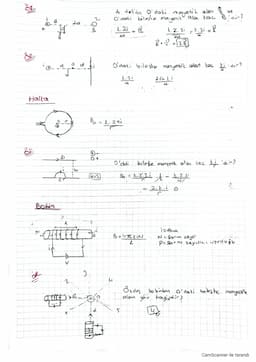

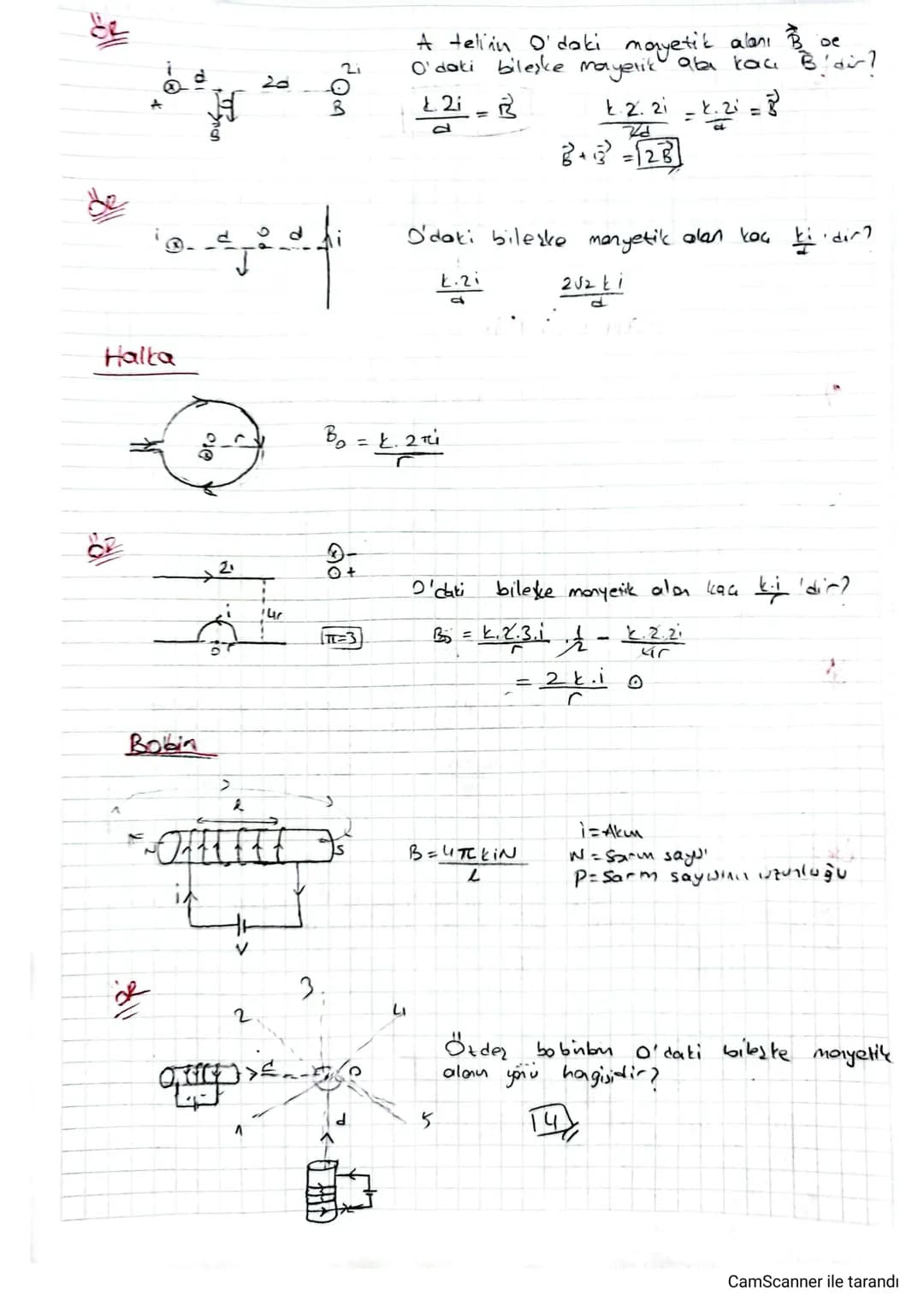

Magnetic Fields in Loops and Solenoids

Circular loops and solenoids create more complex magnetic field patterns that have important applications.

For a circular loop of wire:

Definition: The magnetic field at the center of a circular loop is given by the formula:

B manyetik alan formülü: B = (μ₀ · I) / (2R)

Where:

• μ₀ is the permeability of free space
• I is the current
• R is the radius of the loop

For a solenoid (a coil of wire):

Highlight: Solenoid manyetik alan formülü: B = (μ₀ · N · I) / L

Where:

• N is the number of turns
• L is the length of the solenoid

Example: A long solenoid creates a nearly uniform magnetic field inside its core, which is useful in applications like electromagnets and transformers.

The magnetic field strength inside a solenoid depends on the current, number of turns, and length, but not on the diameter of the coil.

Vocabulary: A solenoid is a type of electromagnet formed by a helical coil of wire.

Magnetic Forces

Magnetic forces act on moving charged particles and current-carrying conductors in magnetic fields.

The magnetic force on a moving charged particle is given by:

Highlight: Manyetik kuvvet Formülü: F = q · v × B

Where:

• F is the force
• q is the charge of the particle
• v is the velocity of the particle
• B is the magnetic field

Definition: The direction of the magnetic force is perpendicular to both the velocity of the particle and the magnetic field, following the right-hand rule.

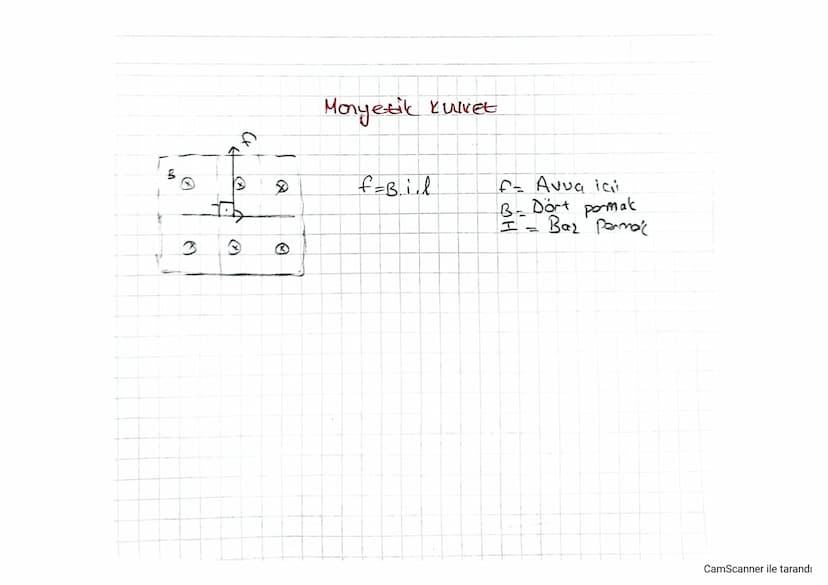

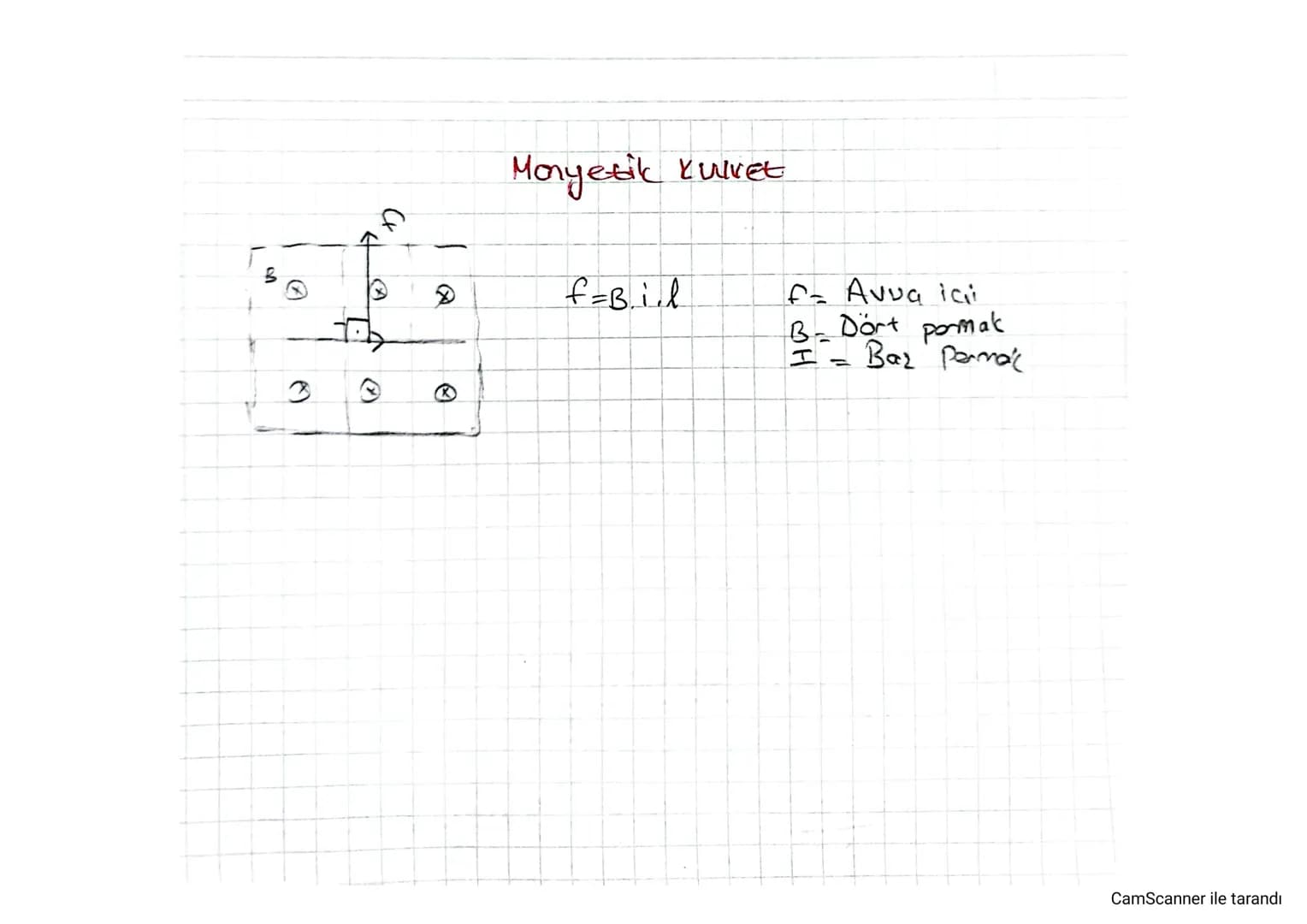

For a current-carrying wire in a magnetic field:

Highlight: Tele Etki Eden Manyetik Kuvvet formülü: F = I · L × B

Where:

• I is the current in the wire
• L is the length of the wire segment

Example: This principle is used in electric motors, where the magnetic force on current-carrying coils causes rotation.

The interaction between magnetic fields and moving charges or currents is the basis for many electromagnetic devices and phenomena.

Vocabulary: Manyetik Kuvvet yönü is determined by the right-hand rule, where the thumb represents the direction of current, the fingers represent the direction of the magnetic field, and the palm faces the direction of the force.

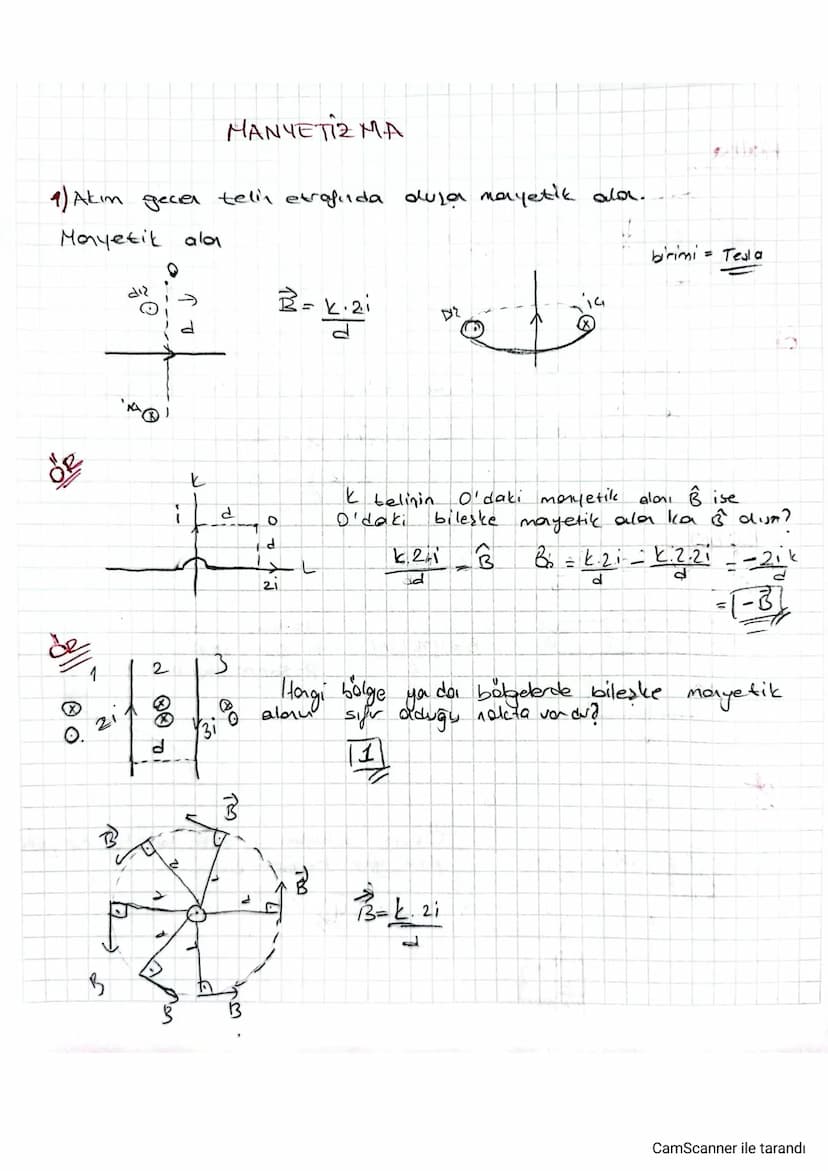

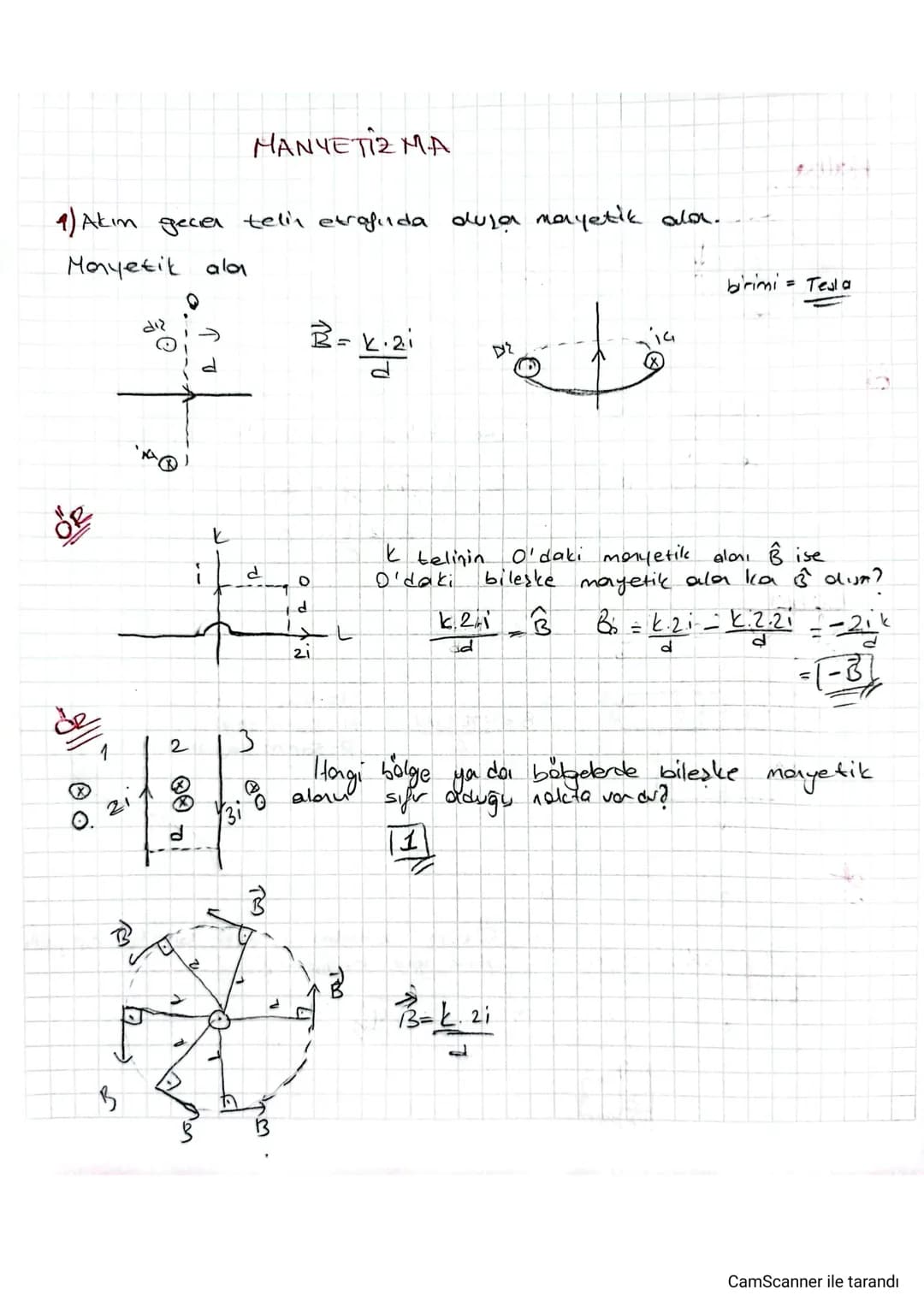

Magnetic Fields Around Current-Carrying Wires

The presence of electric current in a wire generates a magnetic field around it. This phenomenon is fundamental to understanding electromagnetism.

Definition: A magnetic field is a region around a magnet or current-carrying conductor where magnetic forces can be detected.

The strength of the magnetic field (B) created by a current-carrying wire is given by the formula:

Highlight: Manyetik alan Formülü: B = k · $2I / d$

Where:

• B is the magnetic field strength (measured in Tesla)
• k is a constant
• I is the current
• d is the distance from the wire

Example: For two parallel wires carrying currents in opposite directions, the magnetic field at a point between them can be calculated by superposition of their individual fields.

The direction of the magnetic field lines around a current-carrying wire follows the right-hand rule:

Vocabulary: The right-hand rule states that if you point your thumb in the direction of the current, your fingers will curl in the direction of the magnetic field lines.

In certain configurations, the net magnetic field can be zero:

Highlight: Bileşke manyetik alan nasıl sıfır olur: When two or more magnetic fields cancel each other out at specific points or regions.
