Page 2: Advanced Concepts in Simple Machines

This page delves deeper into the mechanics of simple machines, focusing on work, energy, and the specific characteristics of screws as simple machines.

The page begins with the fundamental work equation: W = F · X, where W is work, F is force, and X is displacement. This formula is essential for calculating the energy transfer in simple machines.

Definition: Work is the transfer of energy through the application of force over a distance.

The concept of mechanical advantage is further explored with the equation KK = P/F, where KK represents the mechanical advantage, P is the effort force, and F is the load force. This formula is crucial for solving 11. sınıf fizik basit makineler proje ödevi problems.

Vocabulary: Mechanical advantage (KK) in simple machines is the ratio of the output force to the input force.

The page then focuses on screws as simple machines, introducing the formula h = n · a, where h is the linear distance traveled, n is the number of rotations, and a is the pitch of the screw.

Example: If a screw with a pitch of 2 mm is turned 10 times, it will advance by h = 10 · 2 mm = 20 mm.

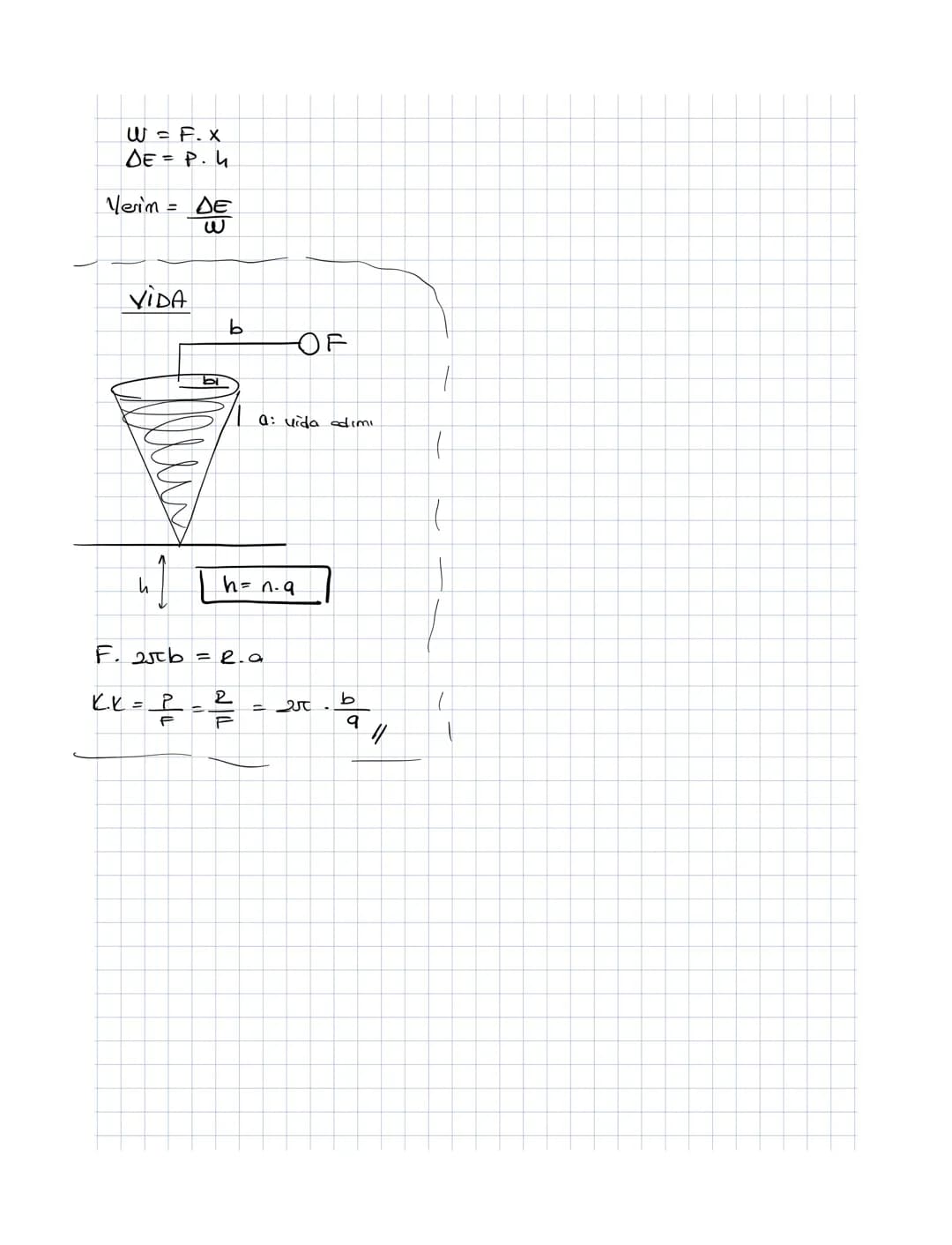

A detailed diagram of a screw is provided, illustrating its key components including the pitch and thread. The relationship between the force applied to the screw (F) and the resulting axial force (R) is given by the equation F · 2πb = R · a, where b is the lever arm length.

Highlight: Understanding screw mechanics is crucial for solving 11. Sınıf Fizik vida soruları.

The page concludes with a practical application of the mechanical advantage formula, showing that for a specific machine, KK = P/F = 20/b. This example demonstrates how to calculate the mechanical advantage of a real-world simple machine.

Quote: "The efficiency of a simple machine is always less than 100% due to friction and other energy losses."

Page 1: Fundamental Principles of Simple Machines

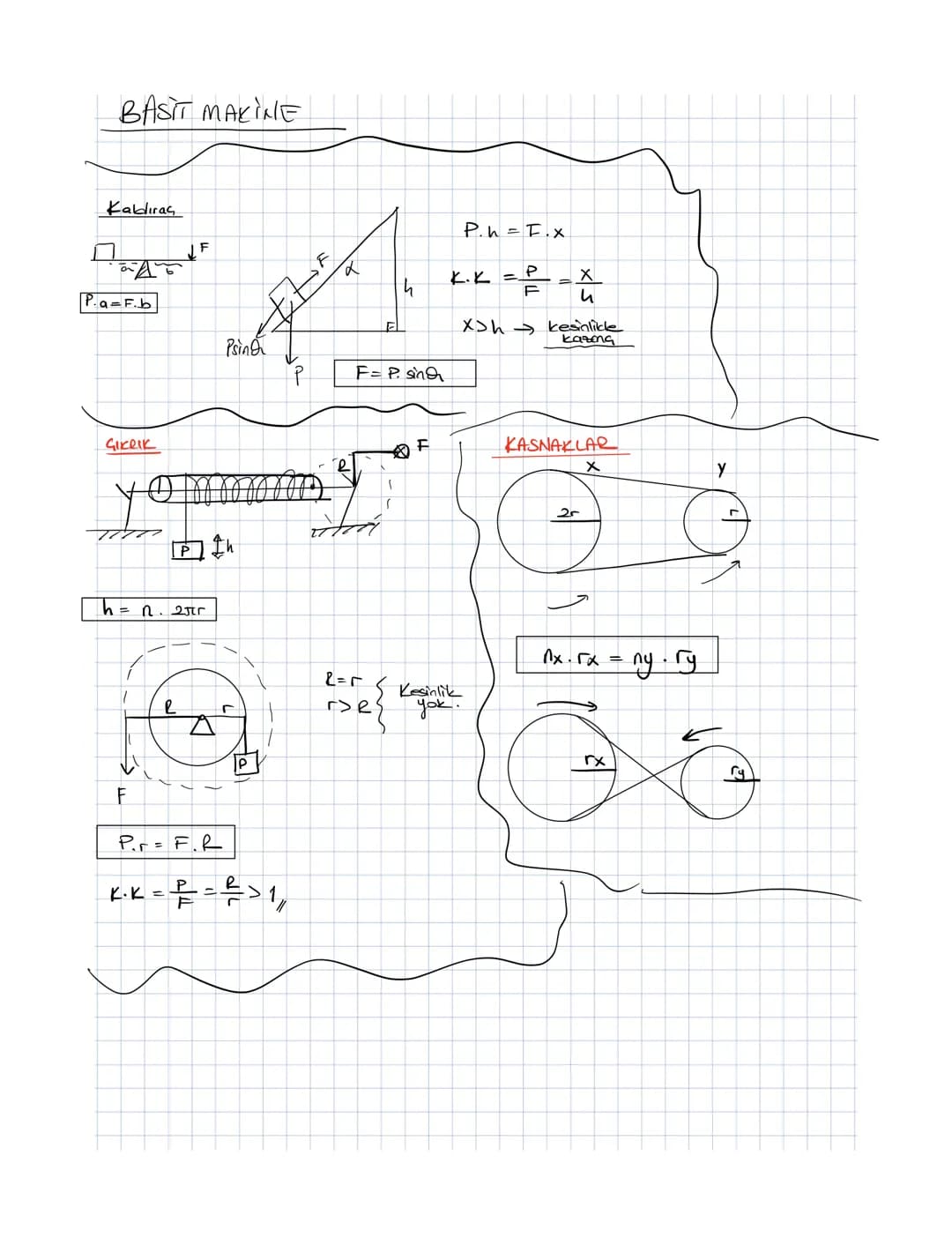

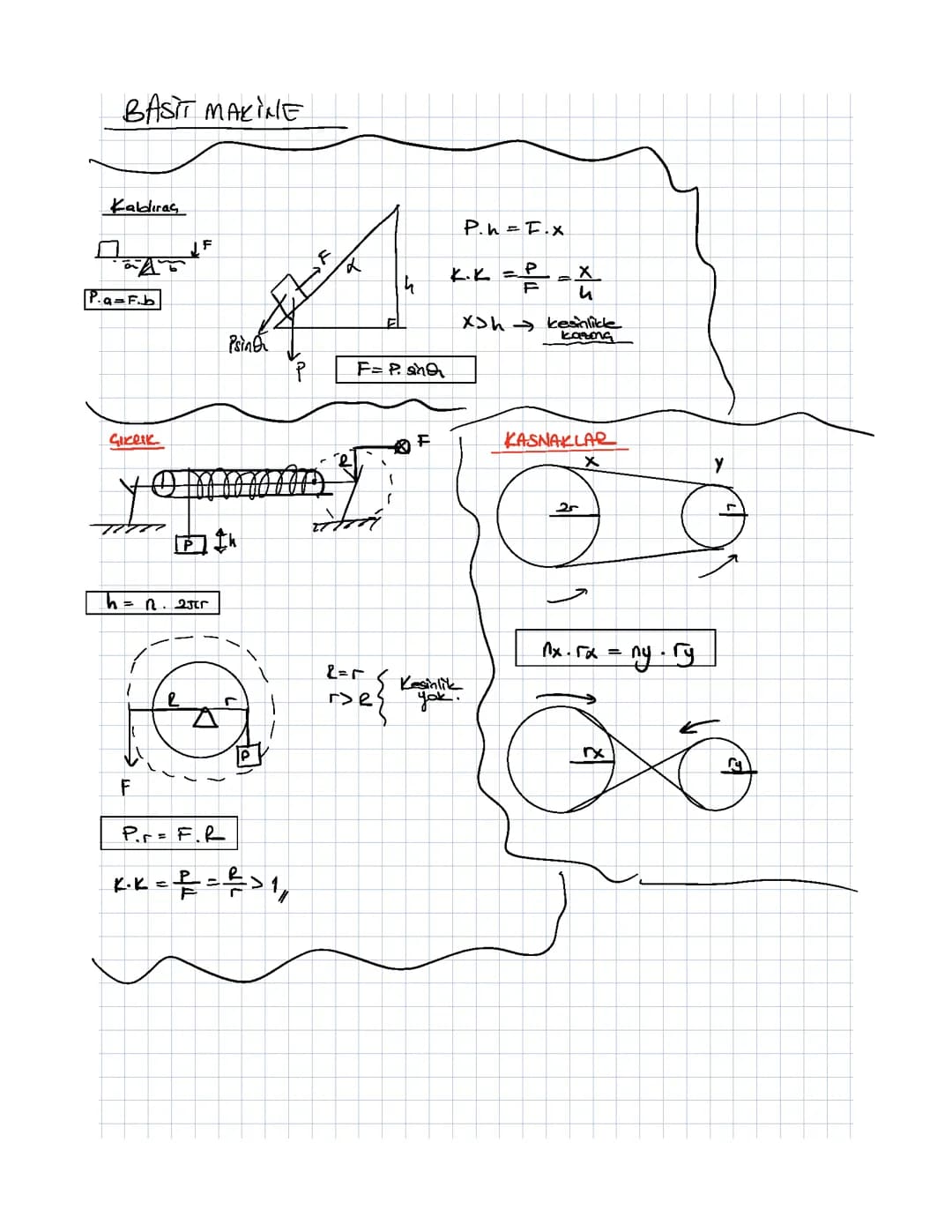

This page introduces the core concepts of simple machines, focusing on levers and pulleys. It presents key formulas and diagrams to illustrate the principles of mechanical advantage.

The page begins with the fundamental equation for levers: P.a = F.b, where P is the effort force, F is the load force, and a and b are the respective distances from the fulcrum. This formula is crucial for understanding the basit makineler formülleri 11. sınıf.

Definition: A simple machine is a mechanical device that changes the direction or magnitude of a force.

The page also covers the concept of mechanical advantage in pulleys, introducing the formula h = n · 2πr, where h is the distance the load is lifted, n is the number of rotations, and r is the radius of the pulley.

Vocabulary: Mechanical advantage (MA) is the ratio of the output force to the input force in a simple machine.

A diagram illustrates the components of an inclined plane, showing the relationship between the force F, the weight P, and the angle of inclination α. The formula F = P · sin α is provided, demonstrating how the required force changes with the angle of the incline.

Example: In a pulley system, if the radius of the pulley is 10 cm and it makes 5 rotations, the load will be lifted by h = 5 · 2π · 10 cm = 314 cm.

The page concludes with an introduction to gear systems, showing how gear ratios affect mechanical advantage. The formula nx · rx = ny · ry is presented, where n represents the number of teeth and r the radius of each gear.

Highlight: Understanding gear ratios is essential for solving complex 11.sınıf fizik basit makineler çözümlü sorular.
