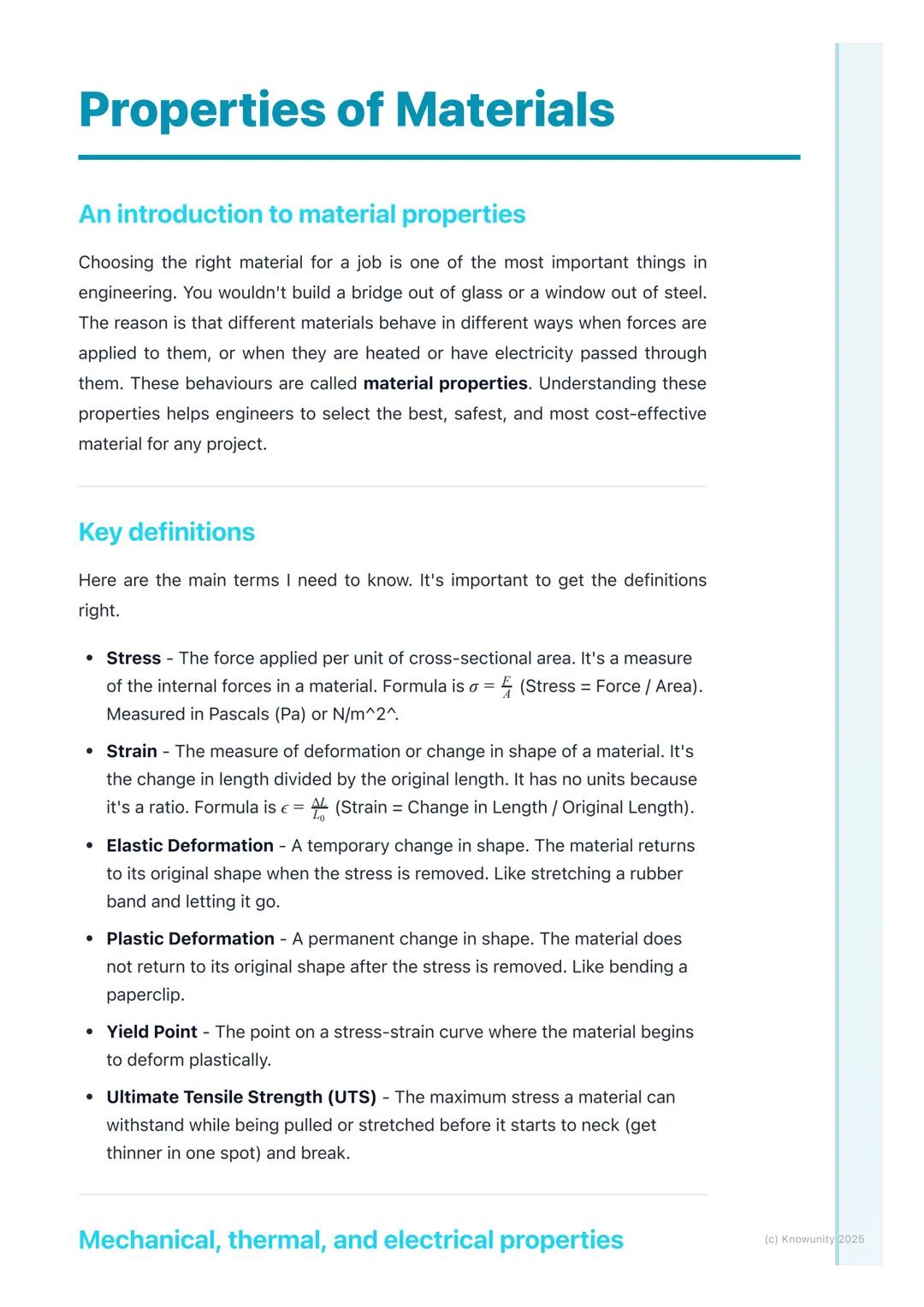

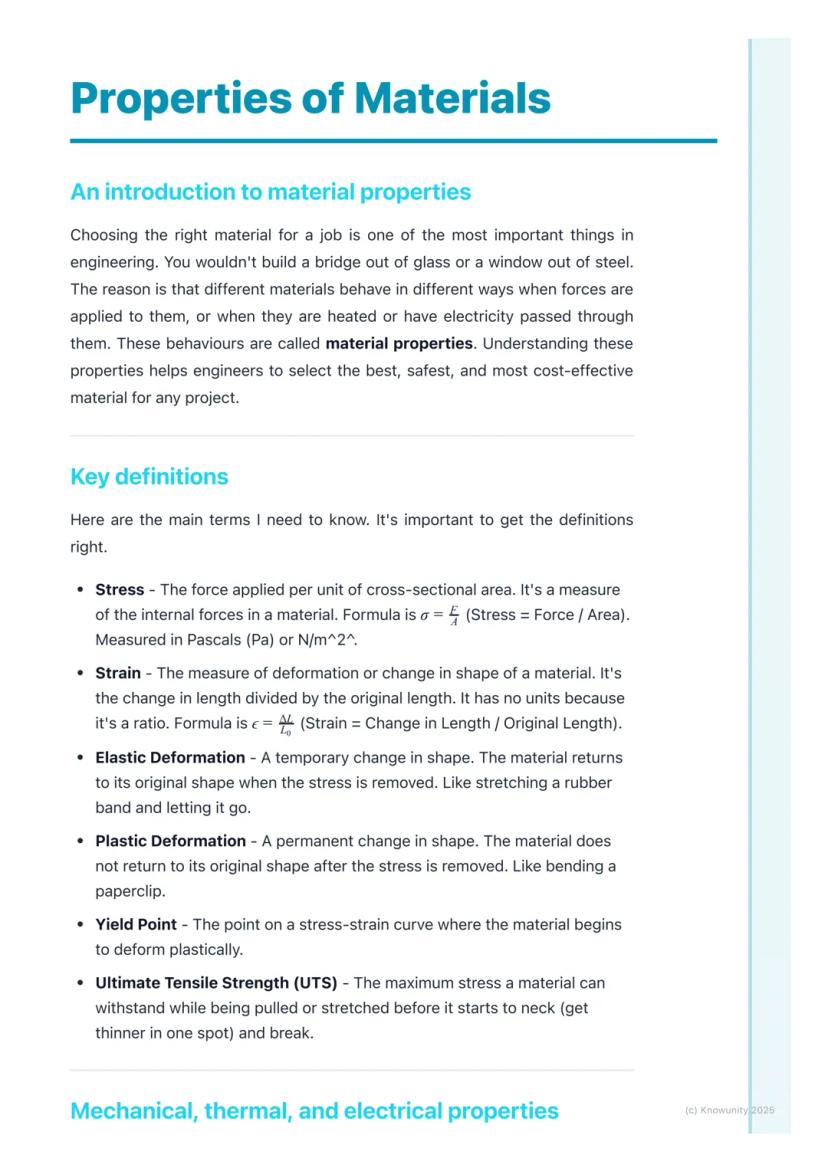

Understanding the Basics

Before diving into specific properties, you need to grasp a few key concepts that form the foundation of materials science. Stress is the force applied per unit area $σ = F/A$, measured in Pascals. Think of it as how much pressure you're putting on a material.

Strain is how much a material deforms compared to its original size $ε = ΔL/L₀$. Unlike stress, strain has no units because it's just a ratio. These two concepts work together to describe how materials respond to forces.

Materials can undergo two types of deformation. Elastic deformation is temporary - like stretching a rubber band that snaps back. Plastic deformation is permanent - like bending a paperclip that stays bent. The yield point marks where elastic becomes plastic, whilst ultimate tensile strength shows the maximum stress before breaking.

Key Insight: Understanding stress and strain is crucial for predicting how any material will behave under real-world conditions.

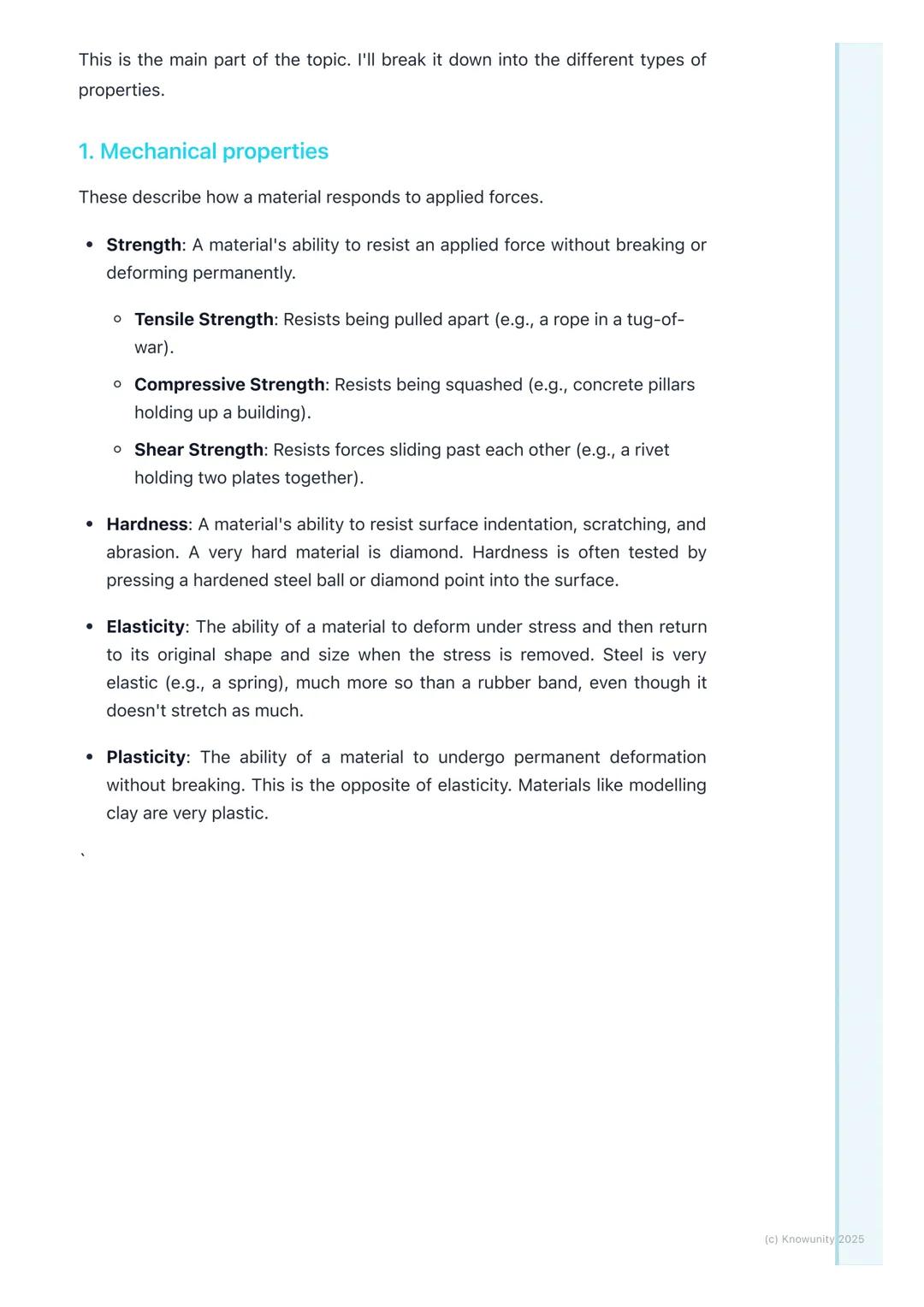

Mechanical Properties - How Materials Handle Forces

Mechanical properties determine how materials respond to different types of forces, making them essential for engineering applications. Strength describes a material's ability to resist applied forces without breaking or permanently deforming.

There are three main types of strength to remember. Tensile strength resists pulling forces $like a rope in tug-of-war$, compressive strength resists crushing forces (concrete pillars), and shear strength resists sliding forces (rivets holding plates together).

Hardness measures resistance to surface damage like scratching or denting - diamond tops this scale. Elasticity allows materials to return to their original shape after deformation, whilst plasticity enables permanent reshaping without breaking.

Don't confuse ductility (ability to be drawn into wires) with malleability (ability to be hammered into sheets). Copper wire demonstrates ductility, whilst aluminium foil shows malleability.

Study Tip: Remember "Ductile = Drawn" and "Malleable = Moulded" to keep these properties straight.

More Mechanical Properties and Stress-Strain Curves

The stress-strain curve is your roadmap for understanding material behaviour under load. The straight portion represents the elastic region where deformation is temporary. After the yield point, you enter the plastic region where changes become permanent.

Toughness combines strength and ductility - it's a material's ability to absorb energy before fracturing. Wrought iron exemplifies toughness, which is why it was perfect for ship anchors. Brittleness sits at the opposite end, describing materials that fracture suddenly with minimal deformation.

Glass and ceramics are classic brittle materials - they simply snap without warning. This brittleness makes them unsuitable for applications requiring impact resistance, despite their impressive compressive strength.

Understanding these properties helps predict failure modes. Tough materials bend and absorb energy before breaking, giving warning signs. Brittle materials fail catastrophically without notice.

Real-World Application: Engineers choose tough materials for safety-critical applications where sudden failure could be dangerous.

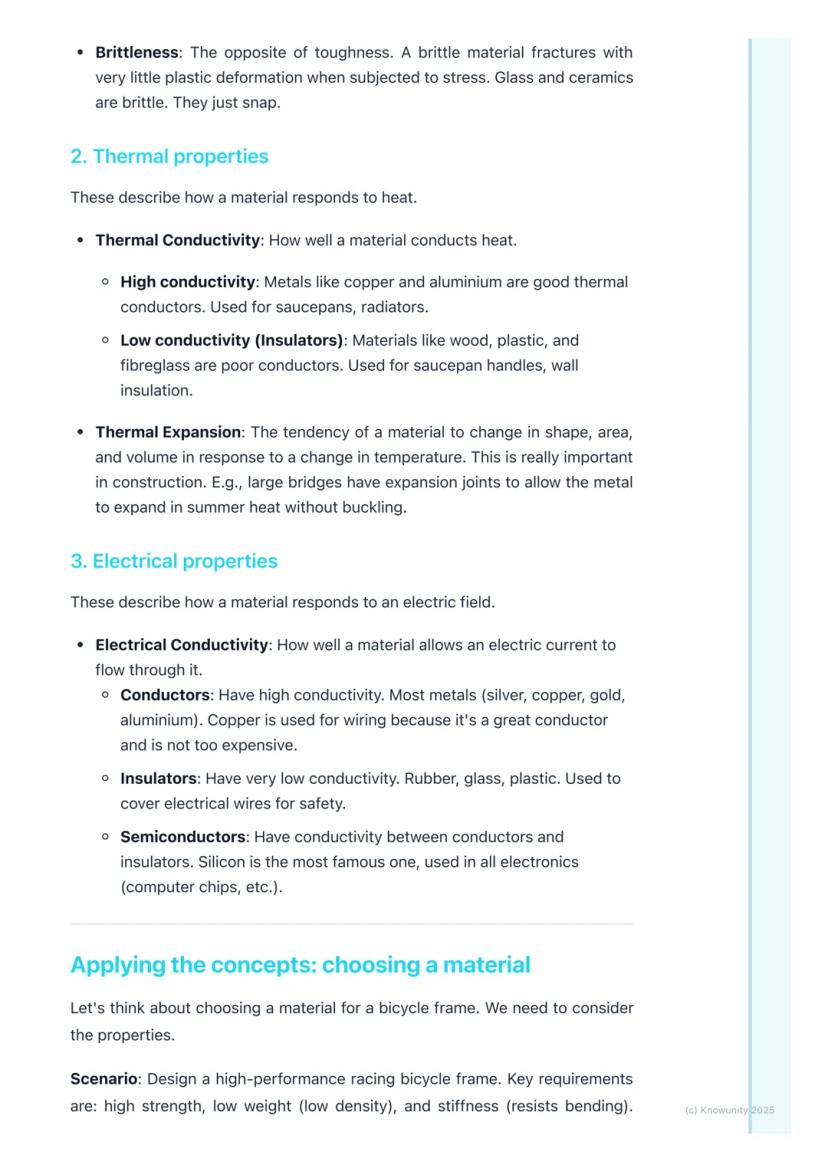

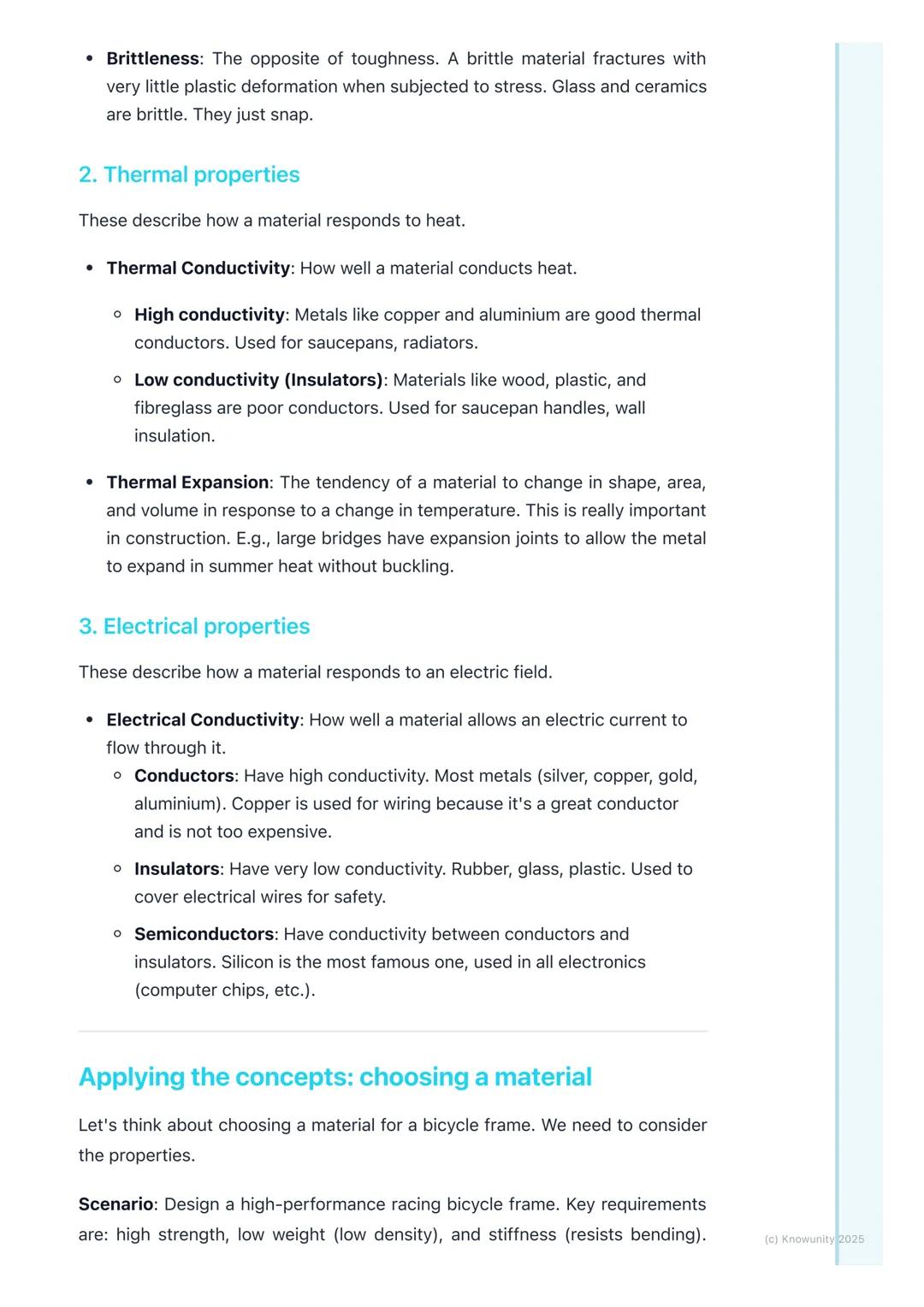

Thermal and Electrical Properties

Thermal properties describe how materials respond to temperature changes. Thermal conductivity determines how well heat flows through a material - metals like copper excel here, making them perfect for saucepans and radiators.

Materials with low thermal conductivity act as insulators. Wood, plastic, and fibreglass keep heat from transferring, which is why saucepan handles use these materials. Thermal expansion causes materials to change size with temperature - large bridges need expansion joints to prevent buckling in summer heat.

Electrical properties govern how materials interact with electricity. Conductors like copper and silver allow current to flow easily, making them ideal for wiring. Insulators like rubber and plastic resist current flow, providing essential safety in electrical applications.

Semiconductors like silicon sit between conductors and insulators. Their unique properties enable all modern electronics - your phone's processor relies entirely on semiconductor behaviour.

Connect the Dots: The same copper used in electrical wiring also appears in cookware because it conducts both electricity and heat exceptionally well.

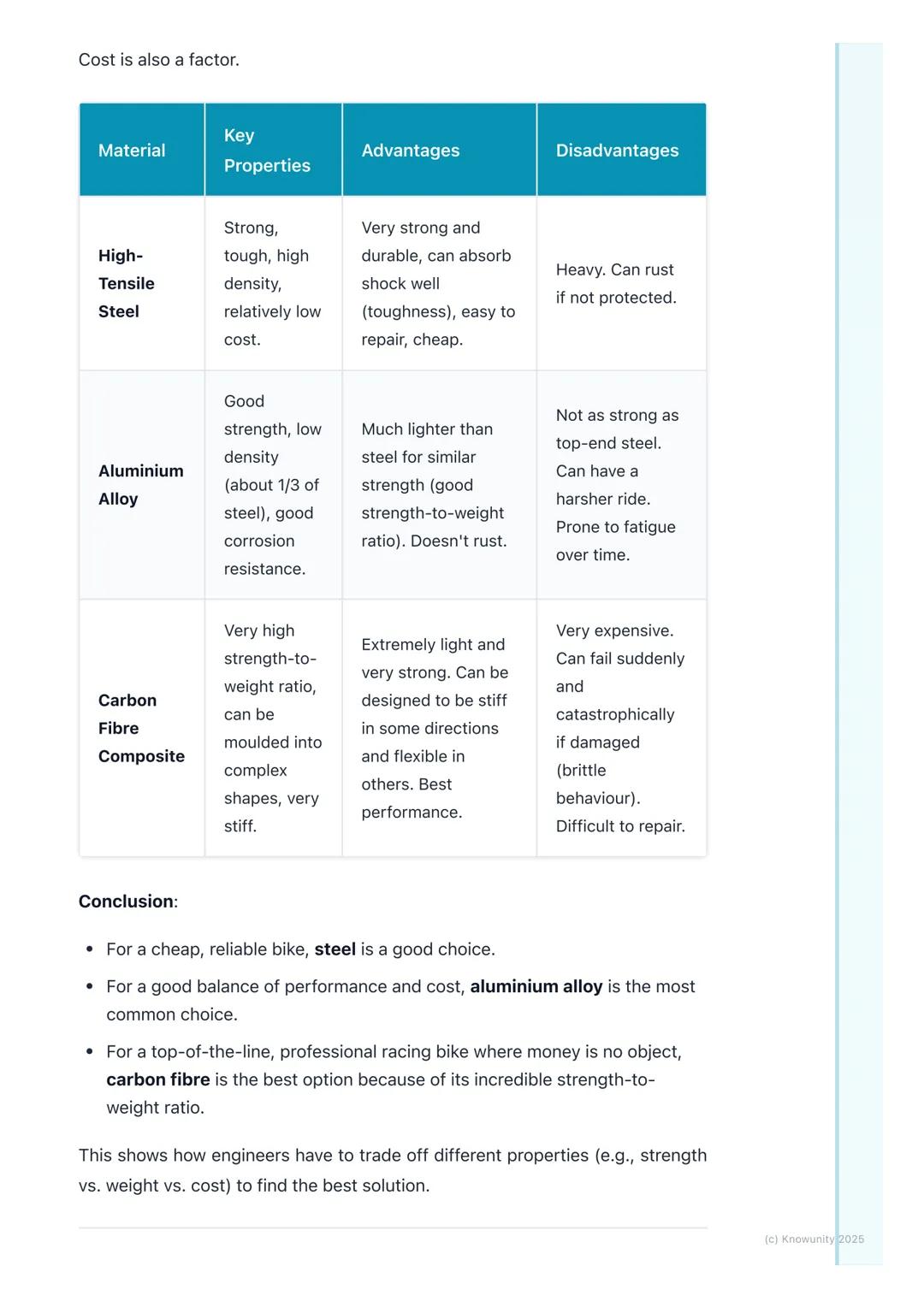

Choosing Materials - The Bicycle Frame Example

Real engineering involves balancing multiple properties to find the best solution. Consider designing a racing bicycle frame where you need high strength, low weight, and good stiffness whilst managing costs.

High-tensile steel offers excellent strength and toughness at low cost. It's durable, absorbs shock well, and repairs easily. However, steel's high density makes it heavy, and it can rust without protection.

Aluminium alloy provides the best balance for most applications. With about one-third the density of steel but similar strength, it offers an excellent strength-to-weight ratio. It doesn't rust either, though it may provide a harsher ride and can suffer fatigue over time.

Carbon fibre composite represents the premium choice. Its exceptional strength-to-weight ratio and ability to be moulded into complex shapes make it perfect for professional racing. The trade-offs include high cost, brittle failure modes, and difficult repairs.

Engineering Reality: The "best" material depends entirely on your priorities - there's no universal winner.

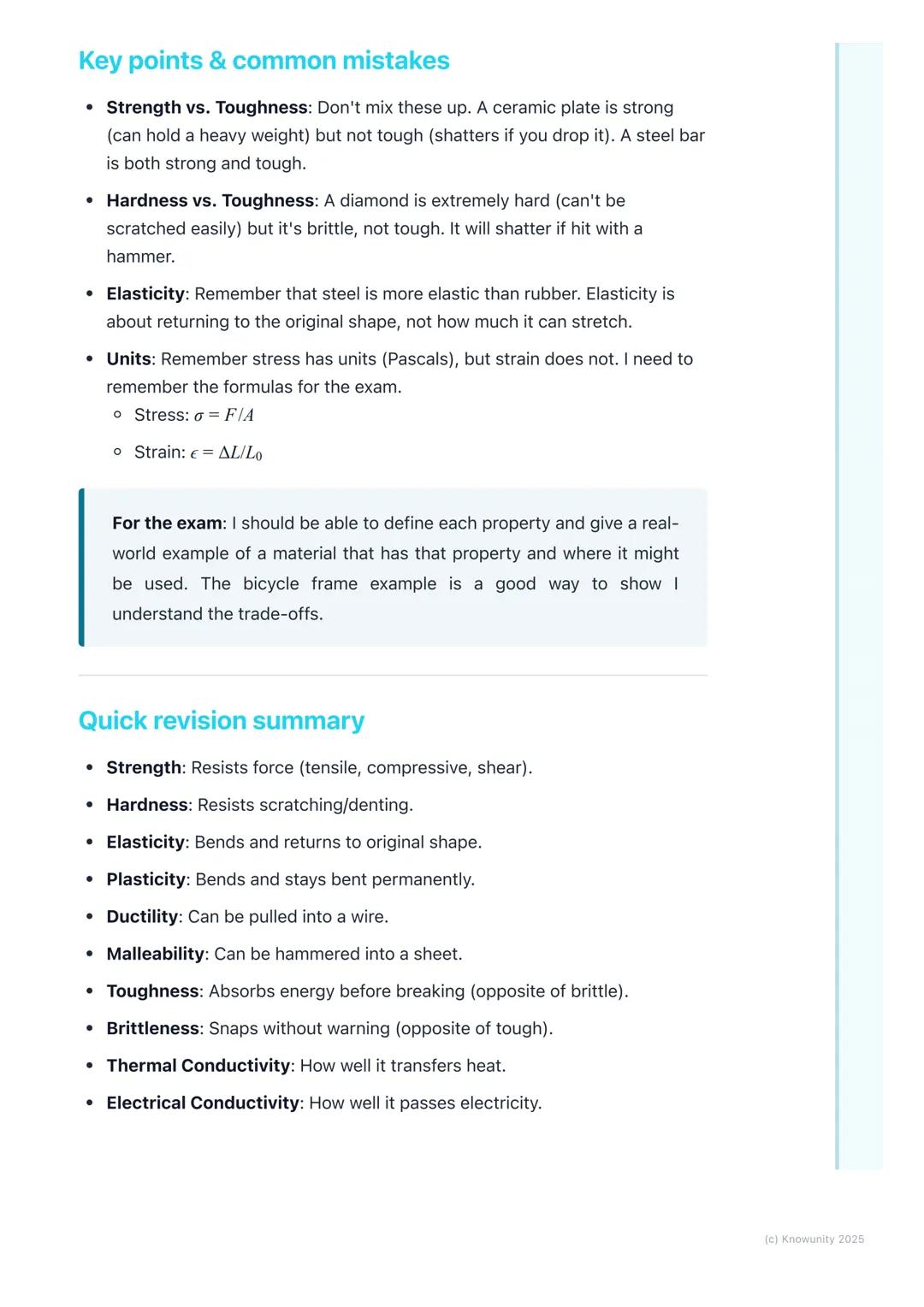

Key Points and Common Mistakes

Understanding the differences between similar-sounding properties prevents costly mistakes. Strength versus toughness often confuses students - a ceramic plate can support heavy weight (strong) but shatters when dropped (not tough). Steel bars are both strong and tough.

Hardness versus toughness creates another common mix-up. Diamond is incredibly hard $scratch-resistant$ but brittle (shatters easily). Don't assume hard materials are tough. Elasticity also trips up students - steel is more elastic than rubber because elasticity measures the ability to return to original shape, not how much something stretches.

For calculations, remember that stress has units (Pascals) whilst strain is unitless. The formulas σ = F/A and ε = ΔL/L₀ are essential for solving problems.

Master these key properties for quick revision: strength (resists force), hardness (resists scratching), elasticity (returns to shape), plasticity (permanent deformation), ductility $wire-making$, malleability $sheet-forming$, toughness (energy absorption), brittleness (sudden failure), thermal conductivity (heat transfer), and electrical conductivity (current flow).

Exam Success: Practice identifying real-world examples of each property and explain why specific materials are chosen for particular applications.
