Circuit Configurations and Ohm's Law Applications

This page delves deeper into the applications of Ohm's Law in various circuit configurations, focusing on series and parallel connections of resistors. It provides valuable information for 10. sınıf ohm yasası and Ohm Kanunu ÖRNEKLERİ.

Series Connection of Resistors: In a series connection, the total resistance (Req) is the sum of individual resistances: Req = R1 + R2 + R3 + ...

Highlight: In series circuits, the current is the same through all components, while the voltage is divided across them.

Parallel Connection of Resistors: For parallel connections, the reciprocal of the total resistance is equal to the sum of the reciprocals of individual resistances: 1/Req = 1/R1 + 1/R2 + 1/R3 + ...

Highlight: In parallel circuits, the voltage is the same across all components, while the current is divided among them.

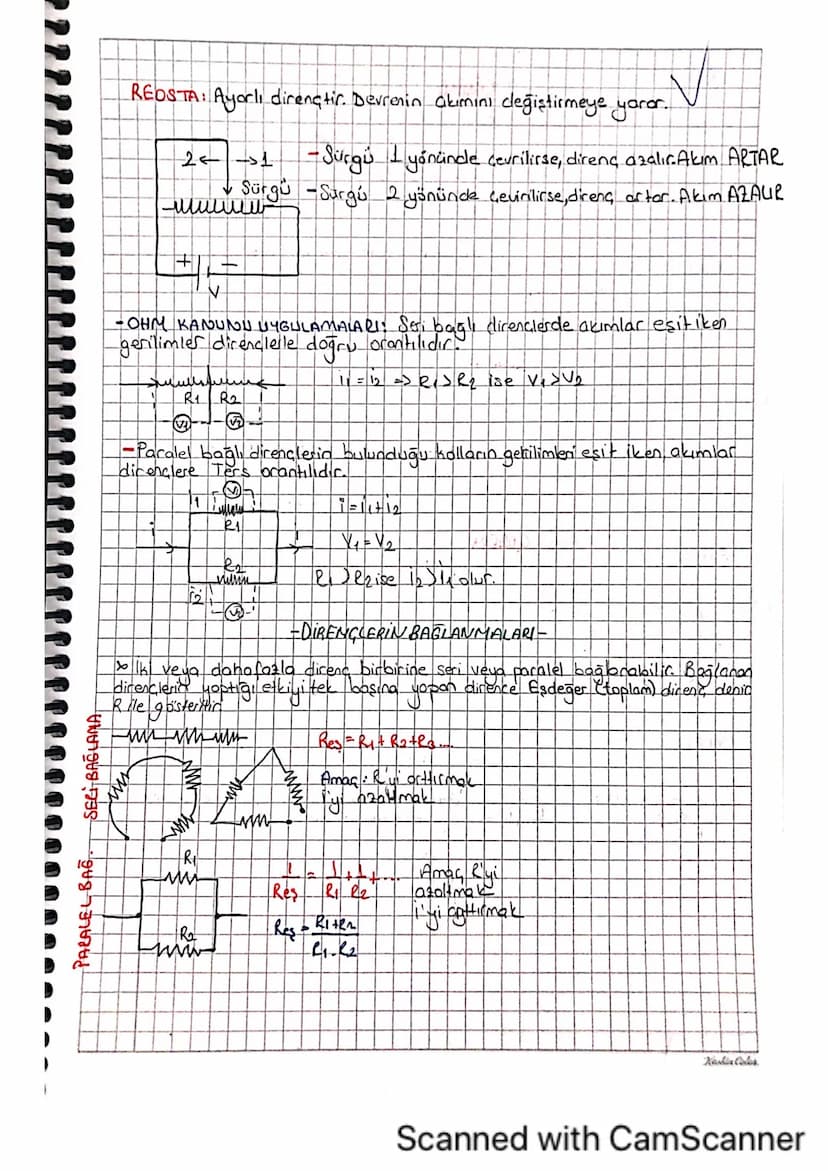

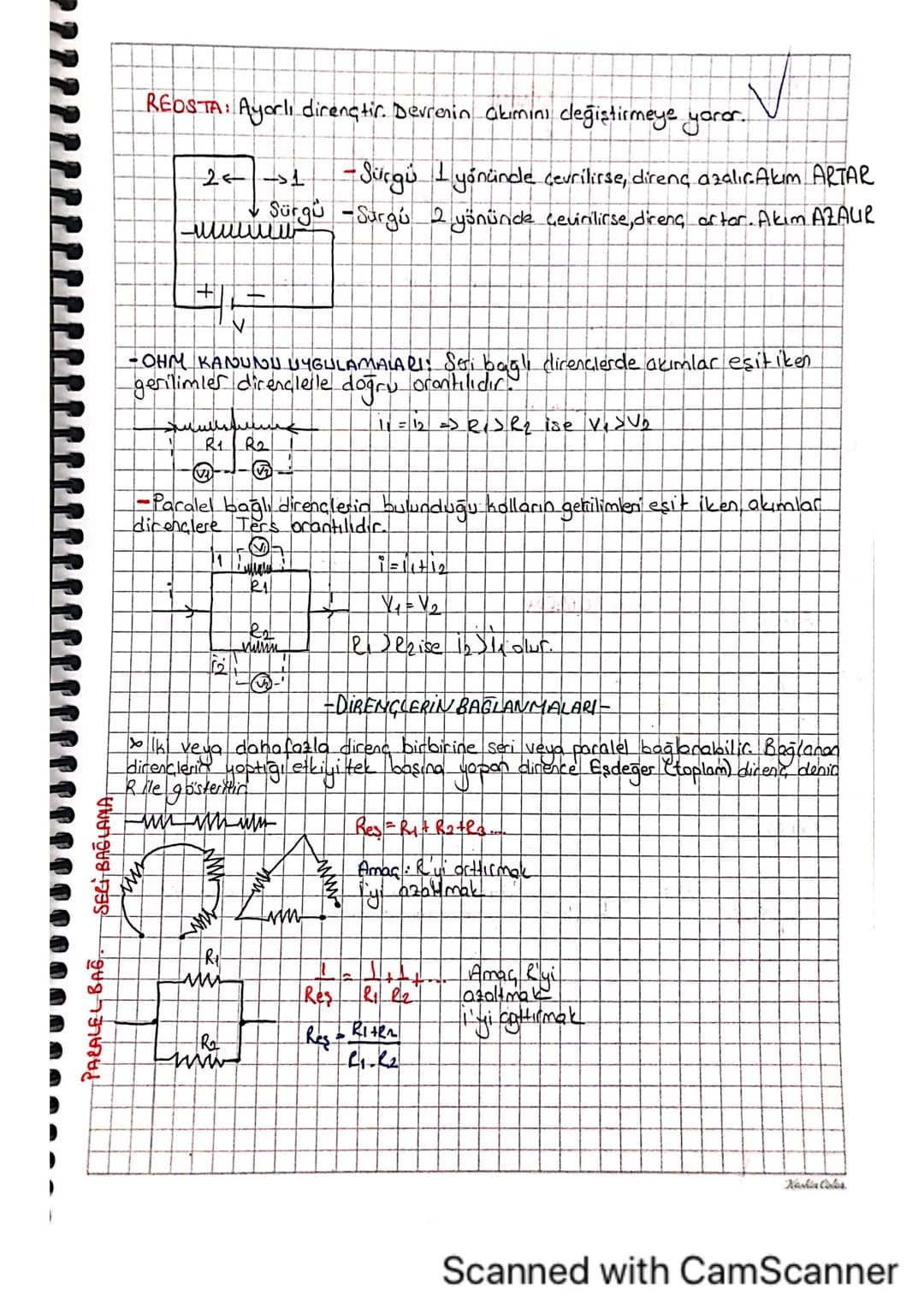

The page introduces the concept of a rheostat, an adjustable resistor used to control current in a circuit. This information is crucial for understanding variable resistance in 10.sınıf fizik elektrik devreleri ders notları.

Vocabulary: A rheostat is an adjustable resistor used to control the current flow in an electrical circuit.

The document also covers the proper connection of ammeters (in series) and voltmeters (in parallel) in circuits, which is essential knowledge for practical circuit analysis and measurement.

Example: When connecting measuring instruments in a circuit:

• Ammeters are connected in series to measure current.
• Voltmeters are connected in parallel to measure voltage.

This comprehensive coverage of circuit configurations and Ohm's Law applications provides students with a solid foundation in 10. Sınıf Fizik Özet PDF material, preparing them for more advanced concepts in electrical circuits and electromagnetism.

Understanding Electrical Resistance and Ohm's Law

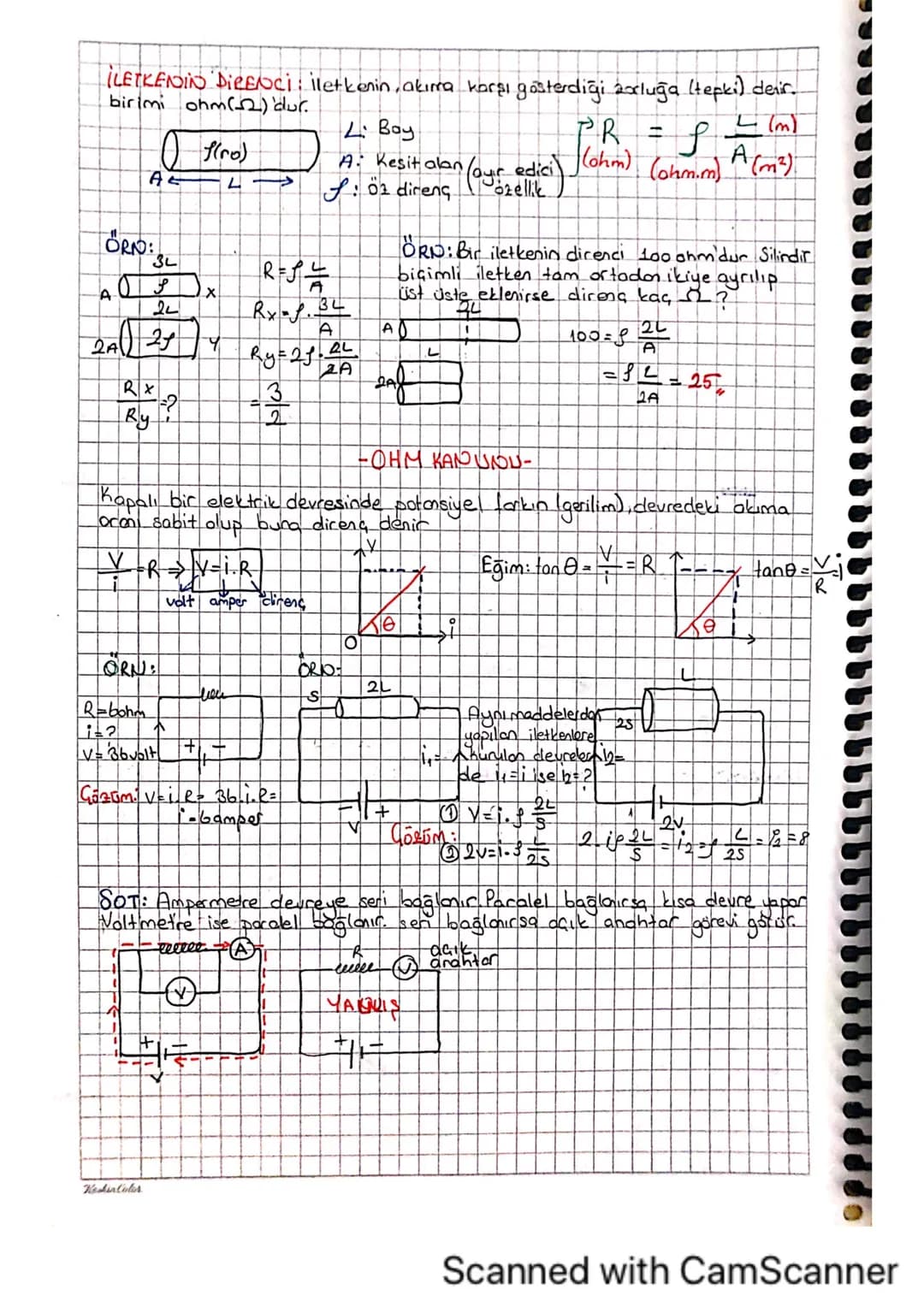

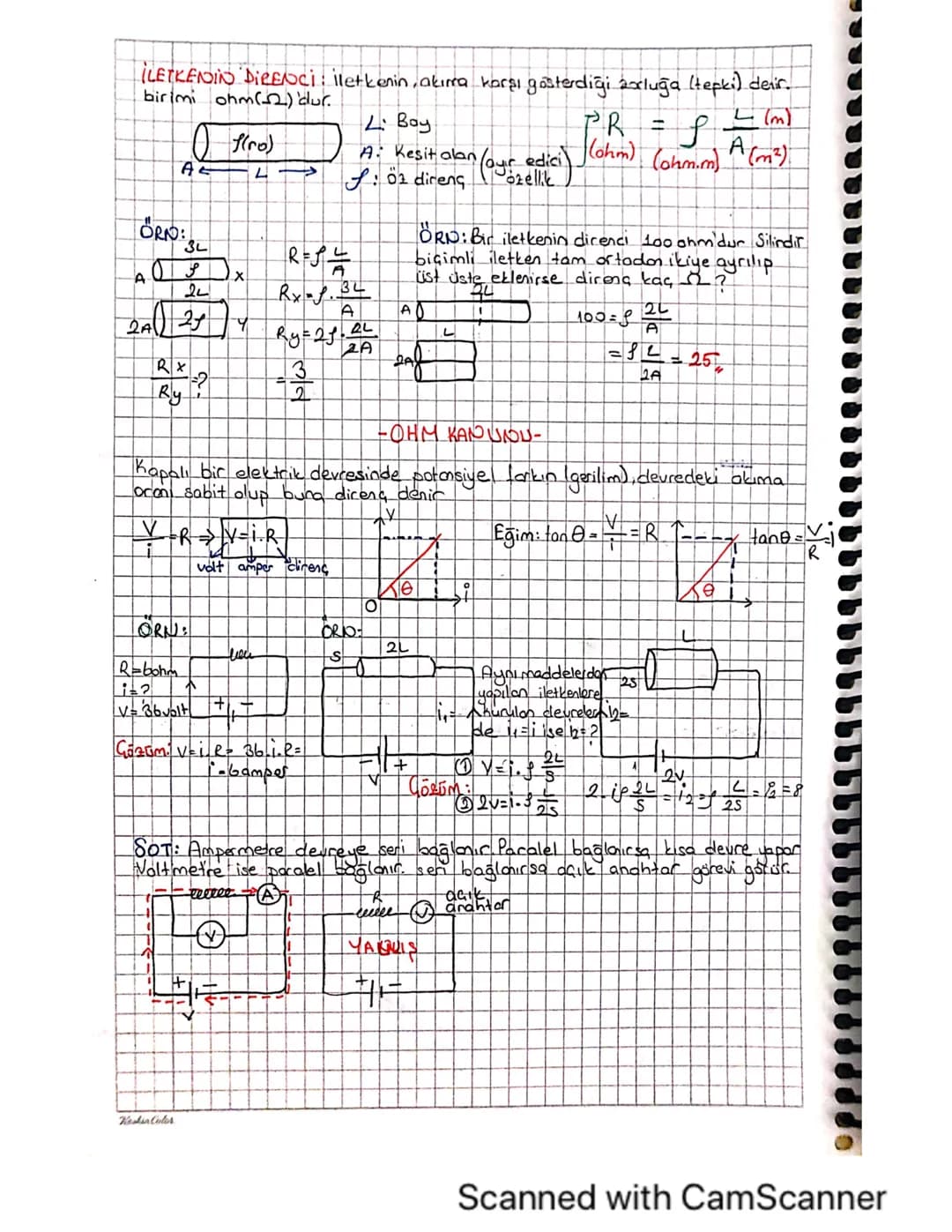

Electrical resistance is a fundamental concept in circuit theory, defining how a conductor opposes the flow of electric current. This page introduces the concept of resistance and its relationship to Ohm's Law, providing essential knowledge for 10. Sınıf Fizik Elektrik ve Manyetizma Konu Anlatımı.

Definition: Electrical resistance is the opposition that a conductor presents to the flow of electric current. It is measured in ohms (Ω).

The resistance of a conductor depends on several factors, which are expressed in the resistance formula:

R = ρ * (L / A)

Where:

• R is the resistance in ohms (Ω)
• ρ (rho) is the resistivity of the material in ohm-meters (Ω·m)
• L is the length of the conductor in meters $m$
• A is the cross-sectional area of the conductor in square meters (m²)

Highlight: Understanding the factors affecting resistance is crucial for 10.sınıf fizik elektrik konu anlatımı and helps in solving problems related to tel direnci hesaplama.

Ohm's Law, a cornerstone principle in electrical circuits, states that the current through a conductor is directly proportional to the voltage across it and inversely proportional to its resistance. This relationship is expressed as:

V = I * R

Where:

• V is the voltage in volts (V)
• I is the current in amperes (A)
• R is the resistance in ohms (Ω)

Example: If a circuit has a resistance of 6 ohms and a voltage of 36 volts, the current can be calculated as I = V / R = 36 V / 6 Ω = 6 A.

This page also includes practical examples demonstrating how changes in a conductor's dimensions affect its resistance, which is essential for understanding Bir iletkenin direnci Nelere bağlıdır and Katı bir iletkenin direncinin bağlı olduğu değişkenler.
