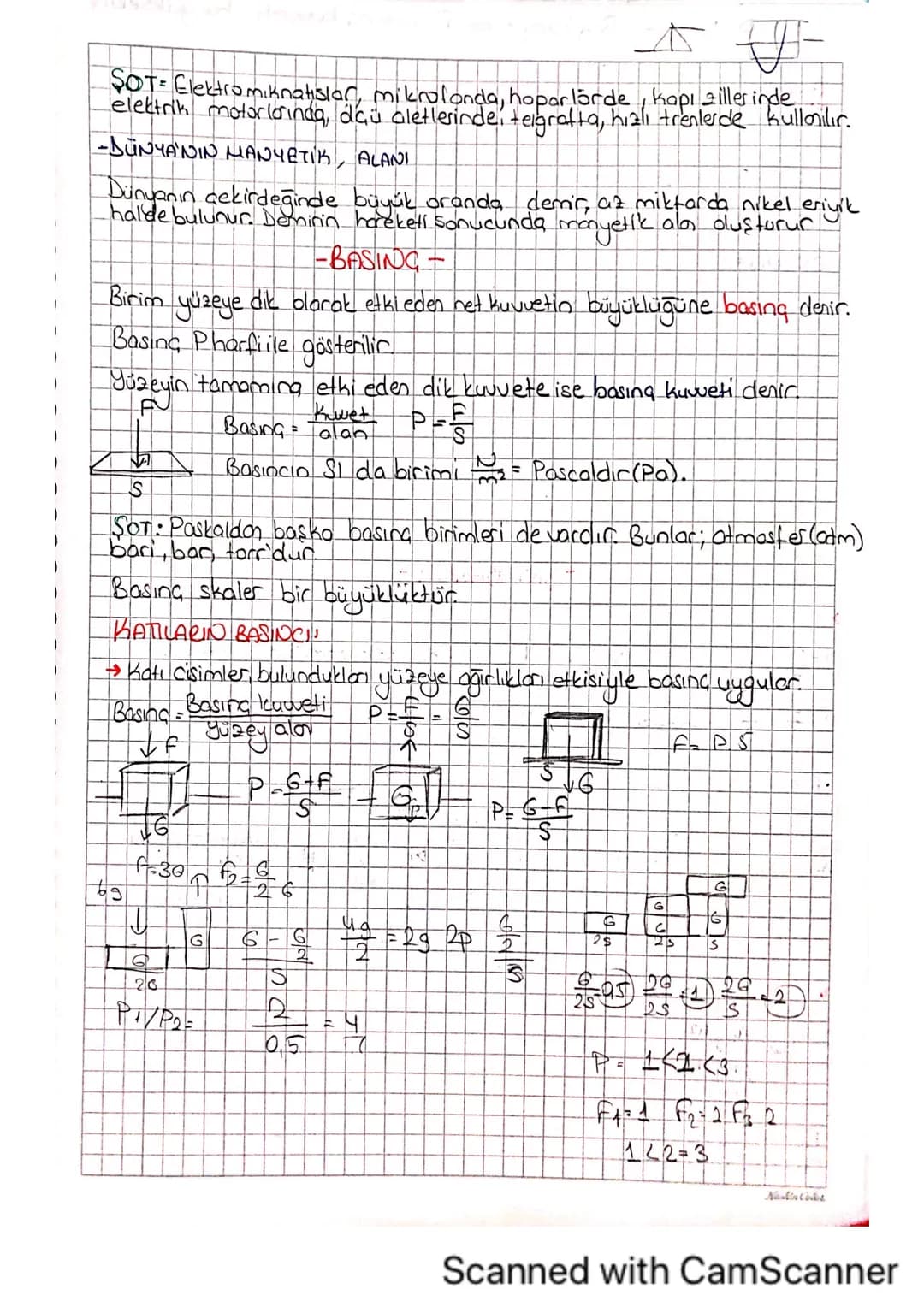

Page 1: Introduction to Pressure and Solid Pressure

This page introduces the concept of pressure and focuses on solid pressure.

Definition: Pressure is the net force acting perpendicular to a surface divided by the area of that surface.

Pressure is denoted by the symbol P and measured in Pascal (Pa) in the SI system. Other units of pressure include atmosphere (atm), bar, and torr.

Highlight: Pressure is a scalar quantity.

Solid Pressure: Solid objects exert pressure on surfaces due to their weight. The formula for solid pressure is:

Formula: P = F / A

Where: P = Pressure F = Force (weight of the object) A = Area of contact

Example: If three objects with different weights $F1 = 1, F2 = 2, F3 = 3$ are placed on surfaces with the same area, their pressures will be in the ratio P1 : P2 : P3 = 1 : 2 : 3.

The page also mentions that solids transmit forces in the same direction and magnitude as applied.

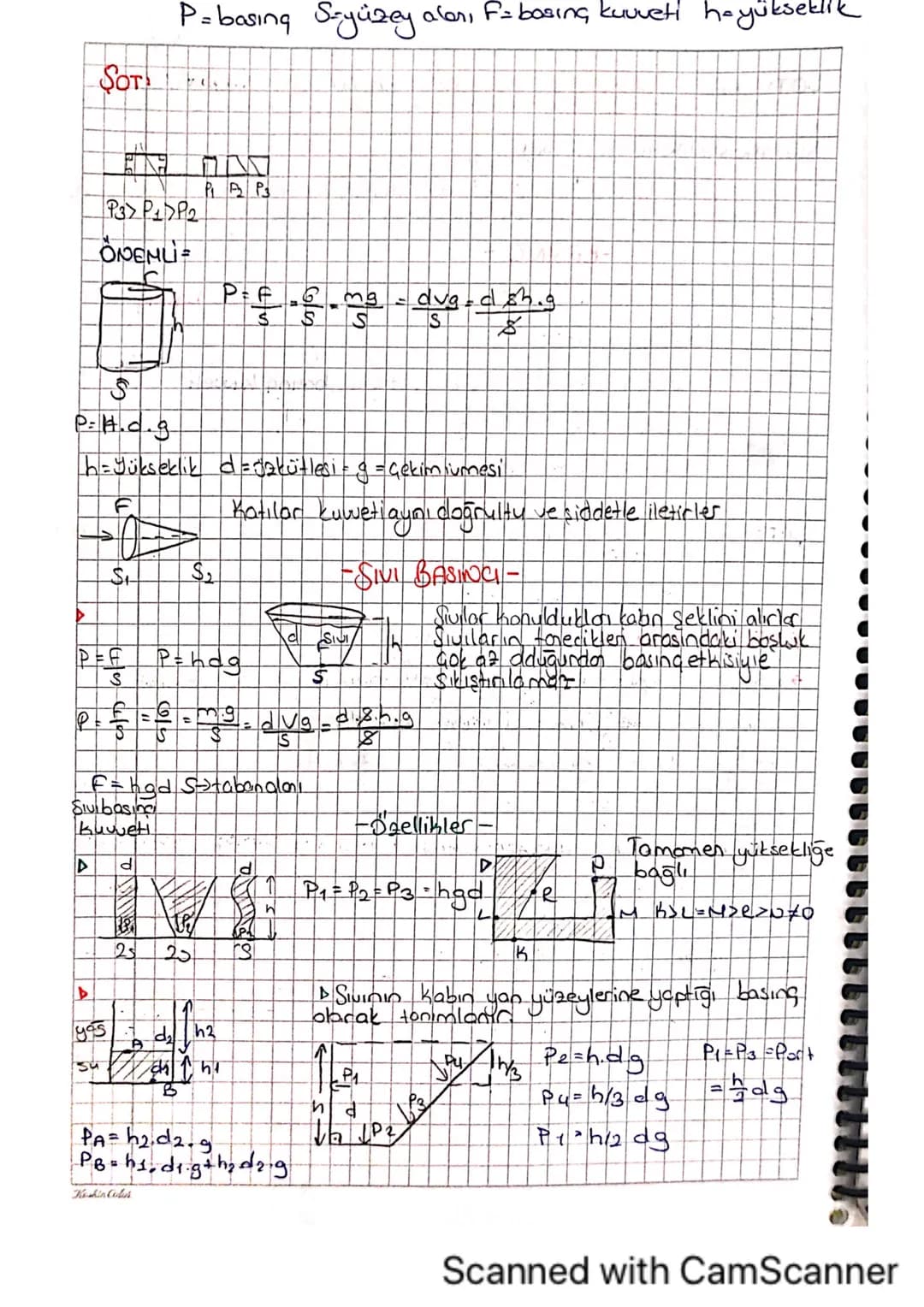

Page 2: Liquid Pressure

This page delves into the concept of liquid pressure and its properties.

Formula: P = h * d * g

Where: P = Pressure h = Height of the liquid column d = Density of the liquid g = Acceleration due to gravity

Key properties of liquid pressure:

1. Liquid pressure depends on the depth of the liquid, not the shape of the container.
2. Pressure is equal at all points at the same depth in a liquid.
3. Liquids cannot be compressed significantly due to pressure.

Highlight: Liquids take the shape of their container and exert pressure on all surfaces, including the sides.

The page provides examples of pressure calculations in different shaped containers and introduces the concept of pressure at different points within a liquid.

Example: In a U-shaped tube with two different liquids that don't mix, the heights of the liquids will be inversely proportional to their densities when in equilibrium.

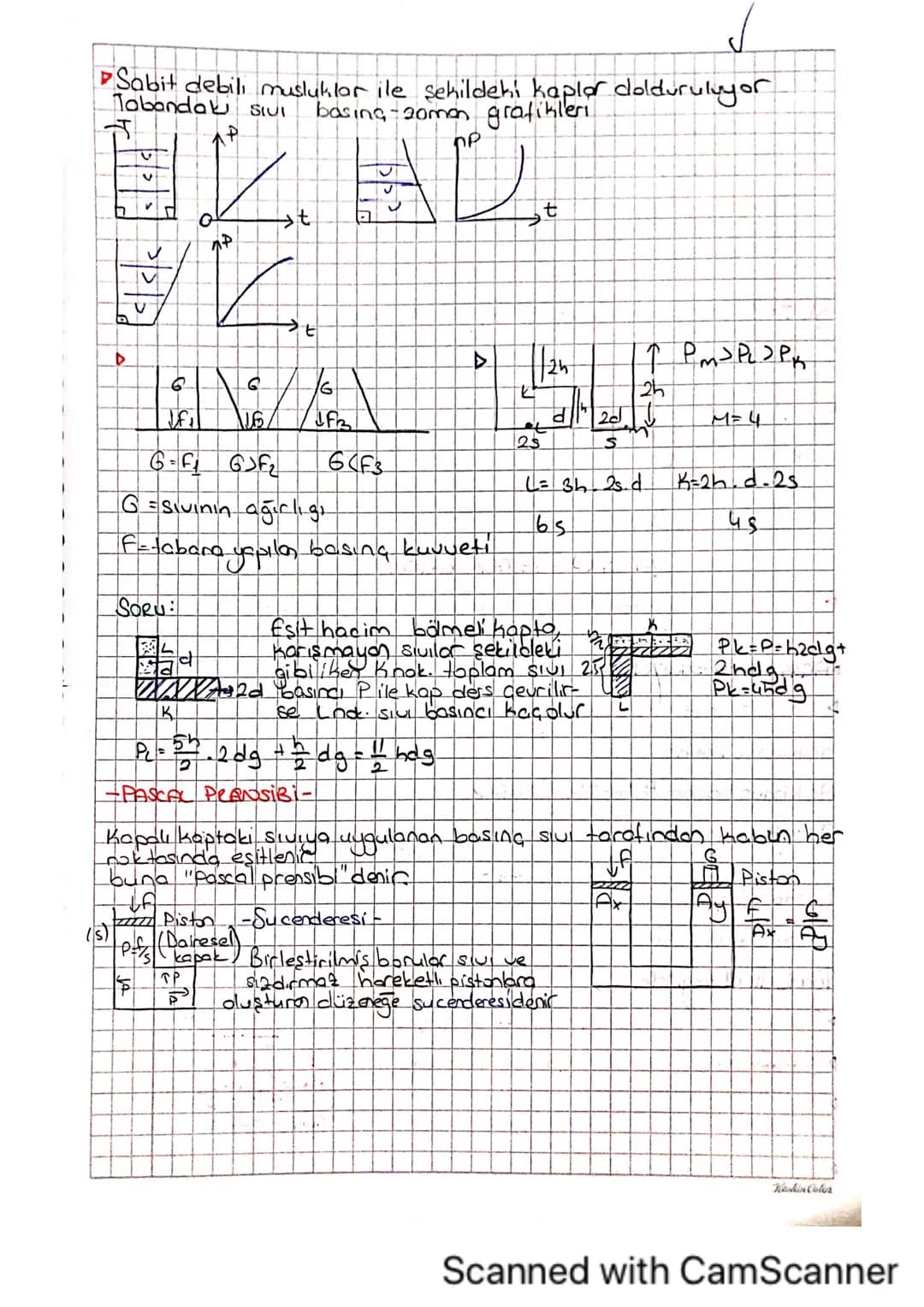

Page 3: Pascal's Principle and Applications

This page introduces Pascal's Principle and its applications in hydraulic systems.

Definition: Pascal's Principle states that pressure applied to an enclosed fluid is transmitted equally throughout the fluid without any loss.

The principle is illustrated with diagrams showing how pressure is transmitted in enclosed systems.

Example: Hydraulic lift systems use Pascal's Principle to multiply force. A small force applied to a small piston can create a much larger force on a larger piston.

The page also covers:

• Pressure in connected vessels with the same liquid
• Behavior of immiscible liquids in U-tubes
• Calculation of total liquid pressure in layered liquids

Highlight: In hydraulic systems, the ratio of forces is inversely proportional to the ratio of areas of the pistons.

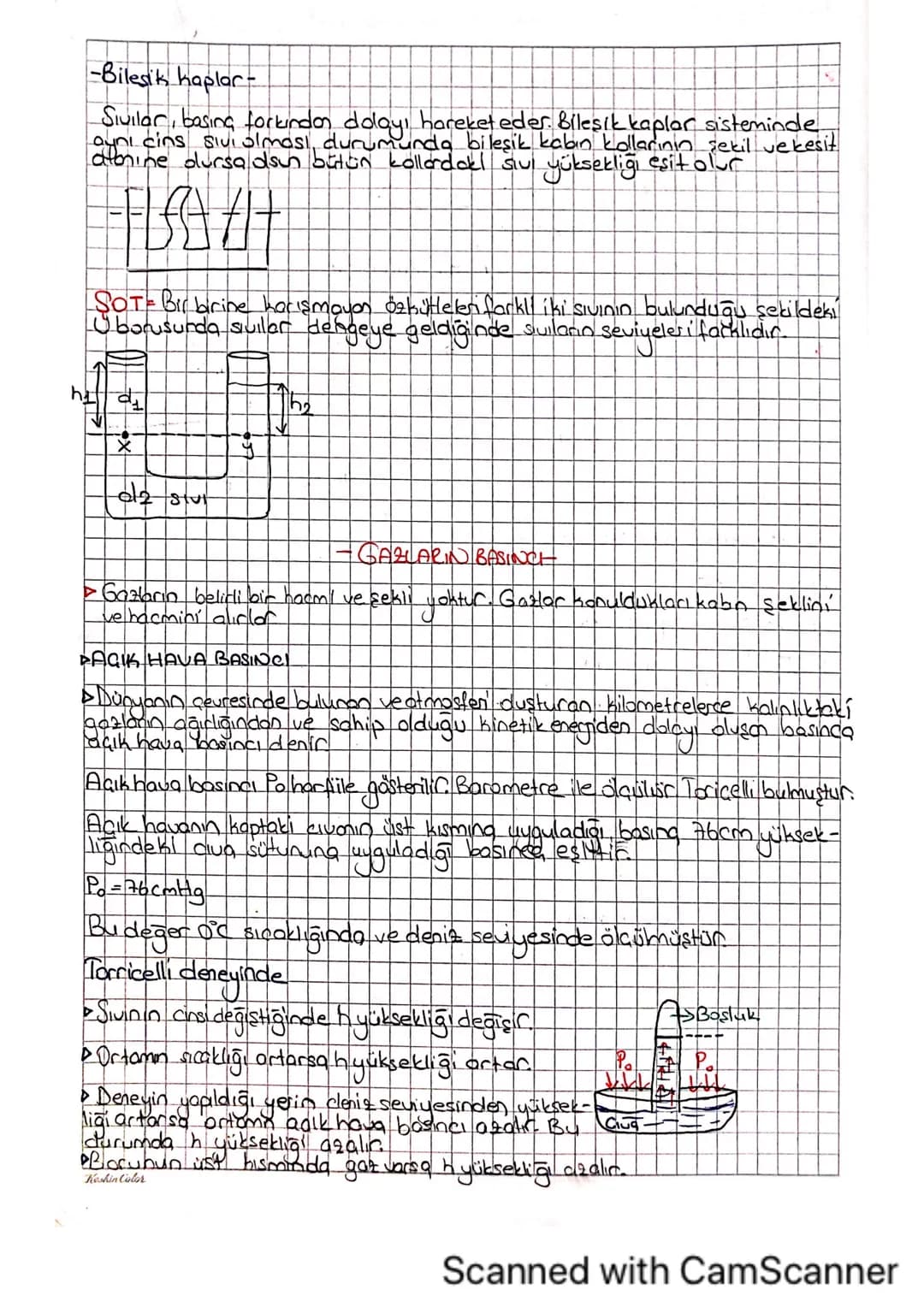

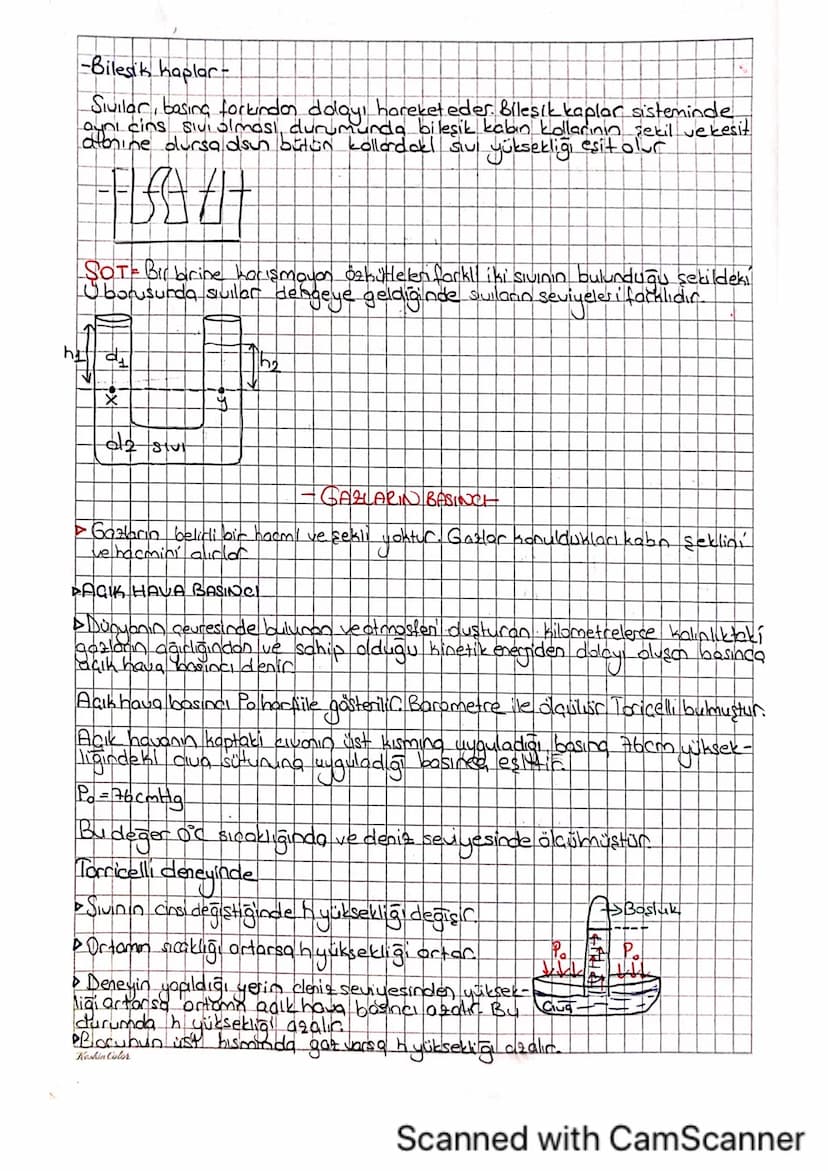

Page 4: Gas Pressure and Atmospheric Pressure

This page focuses on gas pressure and introduces the concept of atmospheric pressure.

Definition: Atmospheric pressure is the pressure exerted by the weight of the air in Earth's atmosphere.

Key points about gas pressure:

• Gases take the shape and volume of their container
• Gas pressure is exerted equally in all directions
• Atmospheric pressure is denoted by P₀ and measured with a barometer

Vocabulary: Barometer - An instrument used to measure atmospheric pressure.

The page discusses Torricelli's experiment, which first measured atmospheric pressure:

• At sea level and 0°C, standard atmospheric pressure is equivalent to 76 cm of mercury
• The height of the mercury column changes with different factors:
  • Type of liquid used
  • Temperature of the environment
  • Altitude (pressure decreases with increasing altitude)
  • Presence of gas in the tube above the liquid

Overall Summary

Pressure in physics is a fundamental concept that applies to solids, liquids, and gases. This guide explores:

• Definition and units of pressure
• Solid pressure and its dependence on force and area
• Liquid pressure and its relationship to depth and density
• Gas pressure, including atmospheric pressure and its measurement
• Pascal's principle and its applications
• Pressure in combined vessels and U-tubes

Key points:

• Pressure is defined as the force applied perpendicular to a surface per unit area
• The SI unit of pressure is Pascal (Pa)
• Solid pressure depends on weight and contact area
• Liquid pressure increases with depth and density
• Gas pressure is exerted equally in all directions
• Pascal's principle states that pressure applied to an enclosed fluid is transmitted equally throughout the fluid
