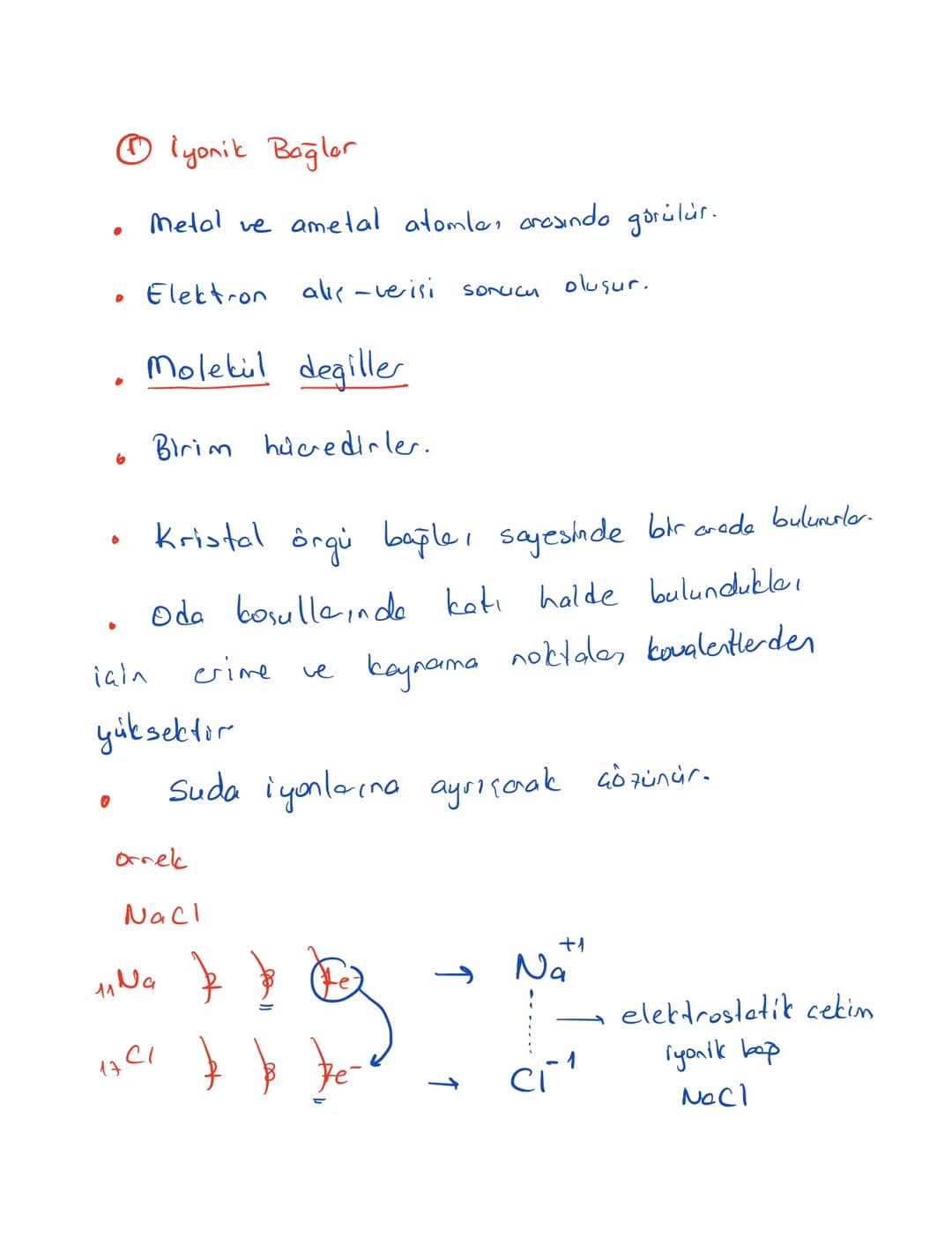

Ionic Bonds

This section delves into the characteristics and formation of ionic bonds, which are a type of strong chemical interaction.

Definition: Ionic bonds are formed between metal and non-metal atoms through the transfer of electrons.

Key points about ionic bonds:

• They result from electron transfer between atoms
• Ionic compounds form crystal lattices, not molecules
• They have high melting and boiling points compared to covalent compounds
• Ionic compounds dissolve in water, separating into ions

Example: Sodium chloride $NaCl$ is a classic example of an ionic compound, formed by the transfer of an electron from sodium to chlorine.

The page also includes a diagram showing the electron transfer process in NaCl formation.

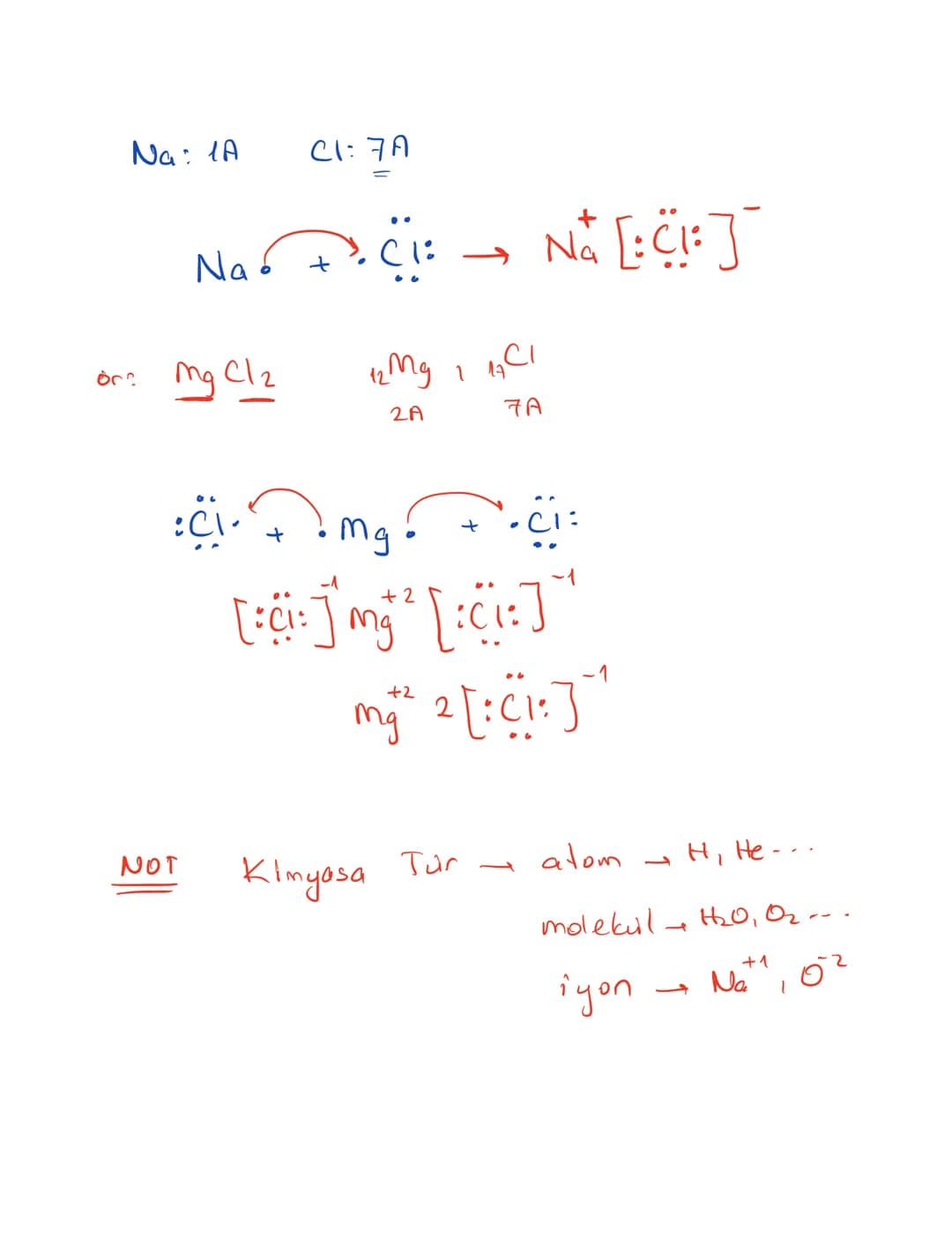

Ionic Bonds (Continued)

This page continues the discussion on ionic bonds, providing more examples and explaining the concept of chemical species.

Example: Magnesium chloride $MgCl₂$ formation is illustrated, showing how magnesium loses two electrons to form bonds with two chlorine atoms.

The page introduces the concept of chemical species:

Vocabulary: Chemical species include atoms $e.g., H, He$, molecules $e.g., H₂O, O₂$, and ions $e.g., Na⁺, O²⁻$.

This information helps students understand the building blocks of chemical interactions and how they relate to ionic bonding.

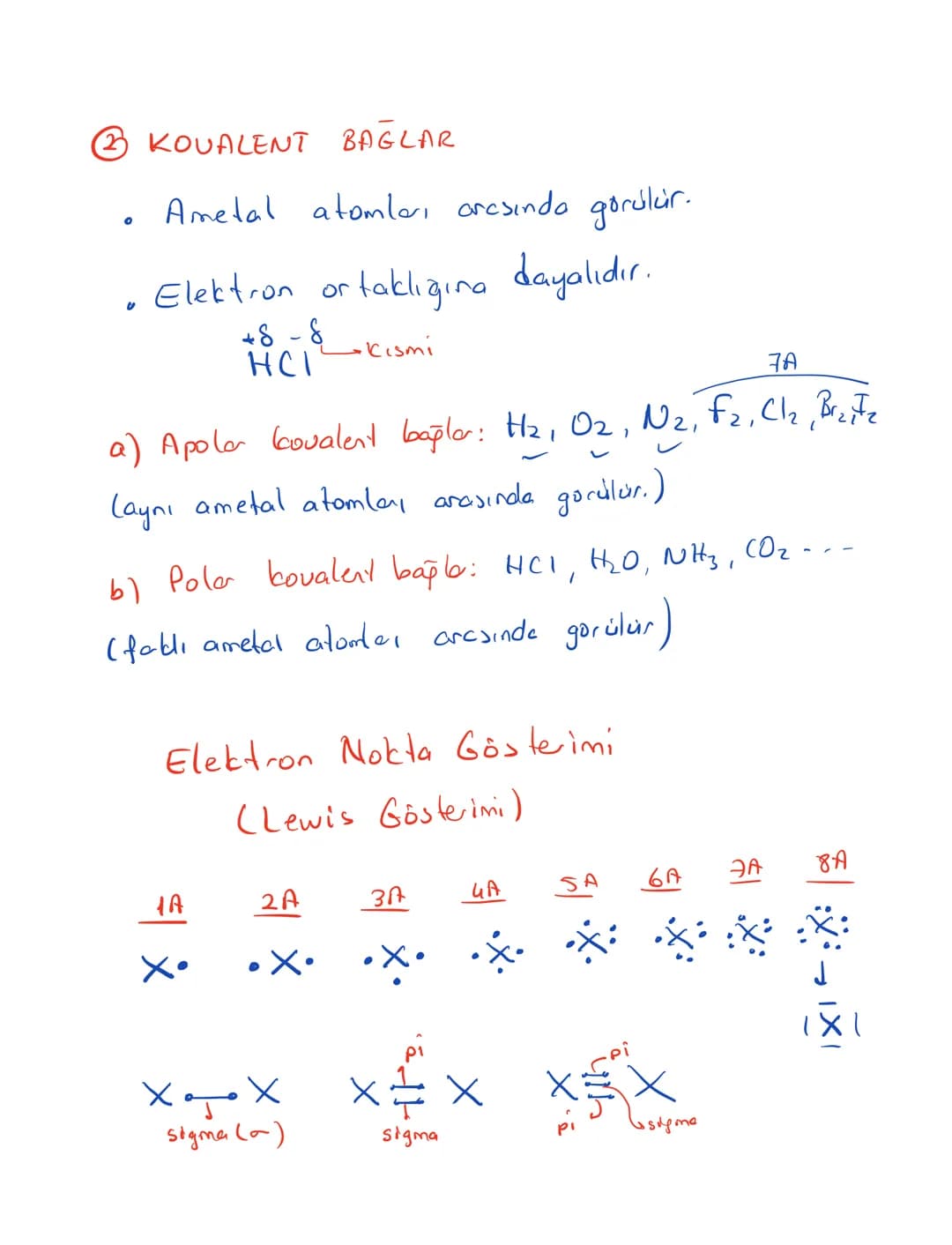

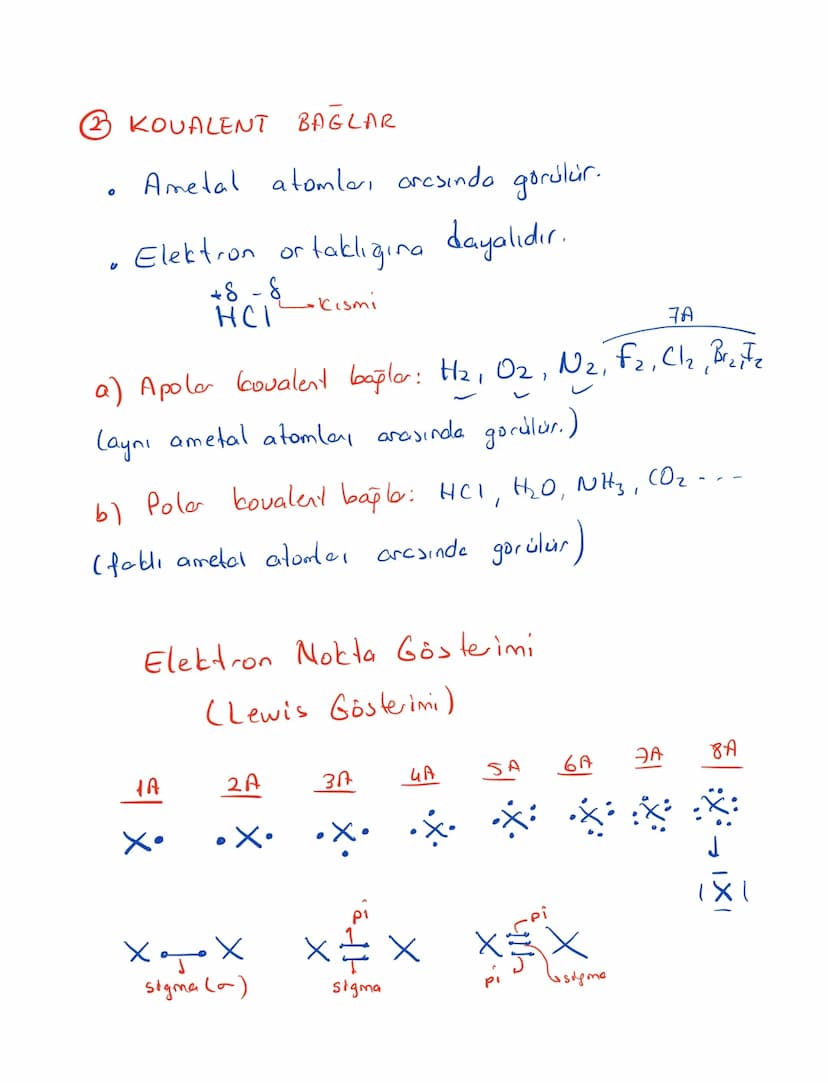

Covalent Bonds

This section introduces covalent bonds, another type of strong chemical interaction.

Definition: Covalent bonds are formed between non-metal atoms through the sharing of electrons.

The page distinguishes between two types of covalent bonds:

1. Nonpolar covalent bonds: Found between atoms of the same non-metal $e.g., H₂, O₂, N₂, F₂, Cl₂, Br₂, I₂$
2. Polar covalent bonds: Found between different non-metal atoms $e.g., HCl, H₂O, NH₃, CO₂$

Highlight: The page introduces Lewis dot structures as a way to represent electron arrangements in covalent bonds.

It also explains the concept of sigma $σ$ bonds, which are formed by the head-on overlap of atomic orbitals.

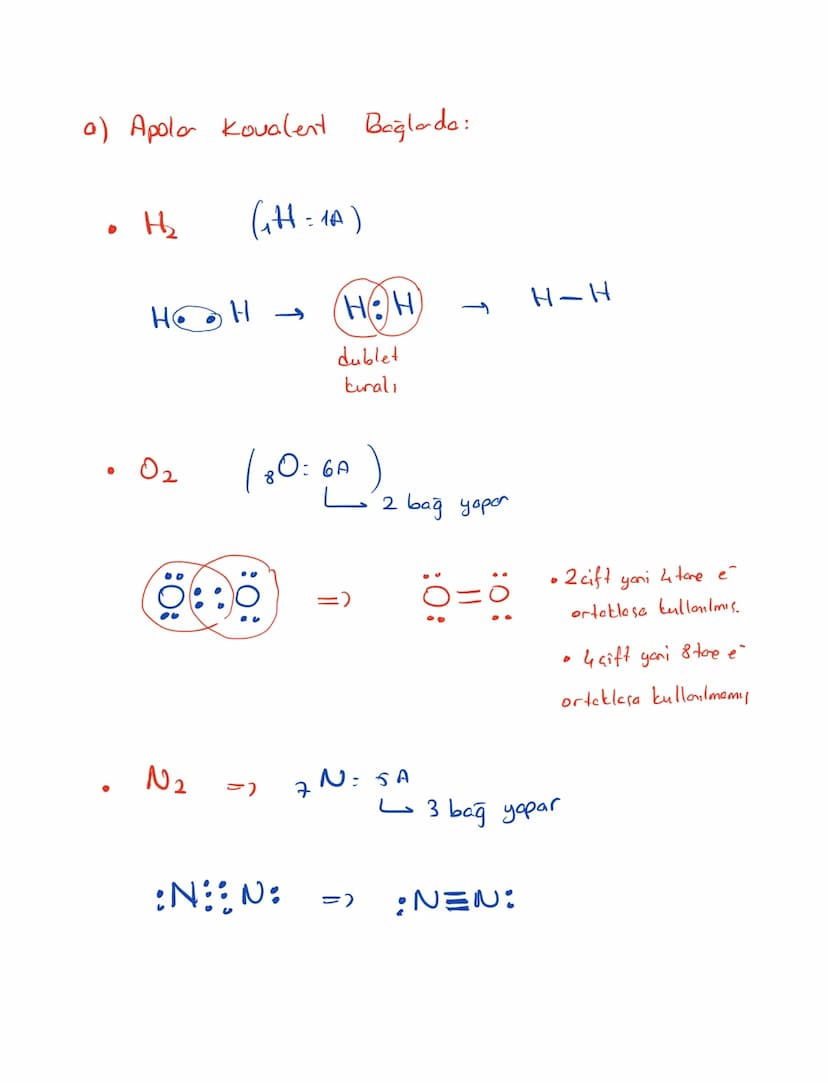

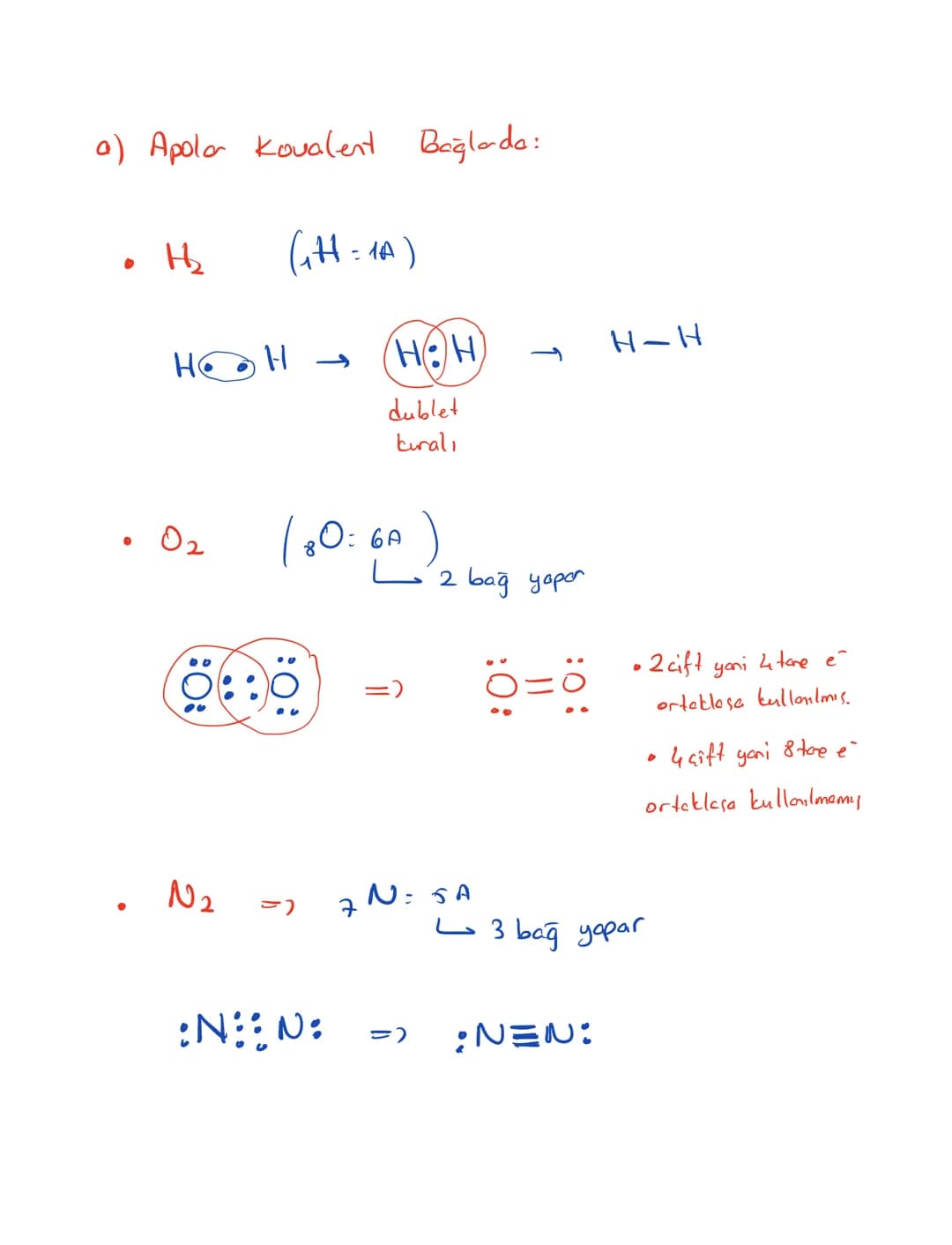

Nonpolar Covalent Bonds

This page focuses on nonpolar covalent bonds, providing examples and explanations of their formation.

Examples of nonpolar covalent bonds:

1. H₂ $Hydrogen molecule$
2. O₂ $Oxygen molecule$
3. N₂ $Nitrogen molecule$

Highlight: The page emphasizes the concept of the octet rule and how it applies to these molecules.

For each example, the page shows:

• The electron configuration
• The Lewis dot structure
• The number of shared electron pairs

Example: In N₂, three bonds are formed, sharing six electrons between the two nitrogen atoms.

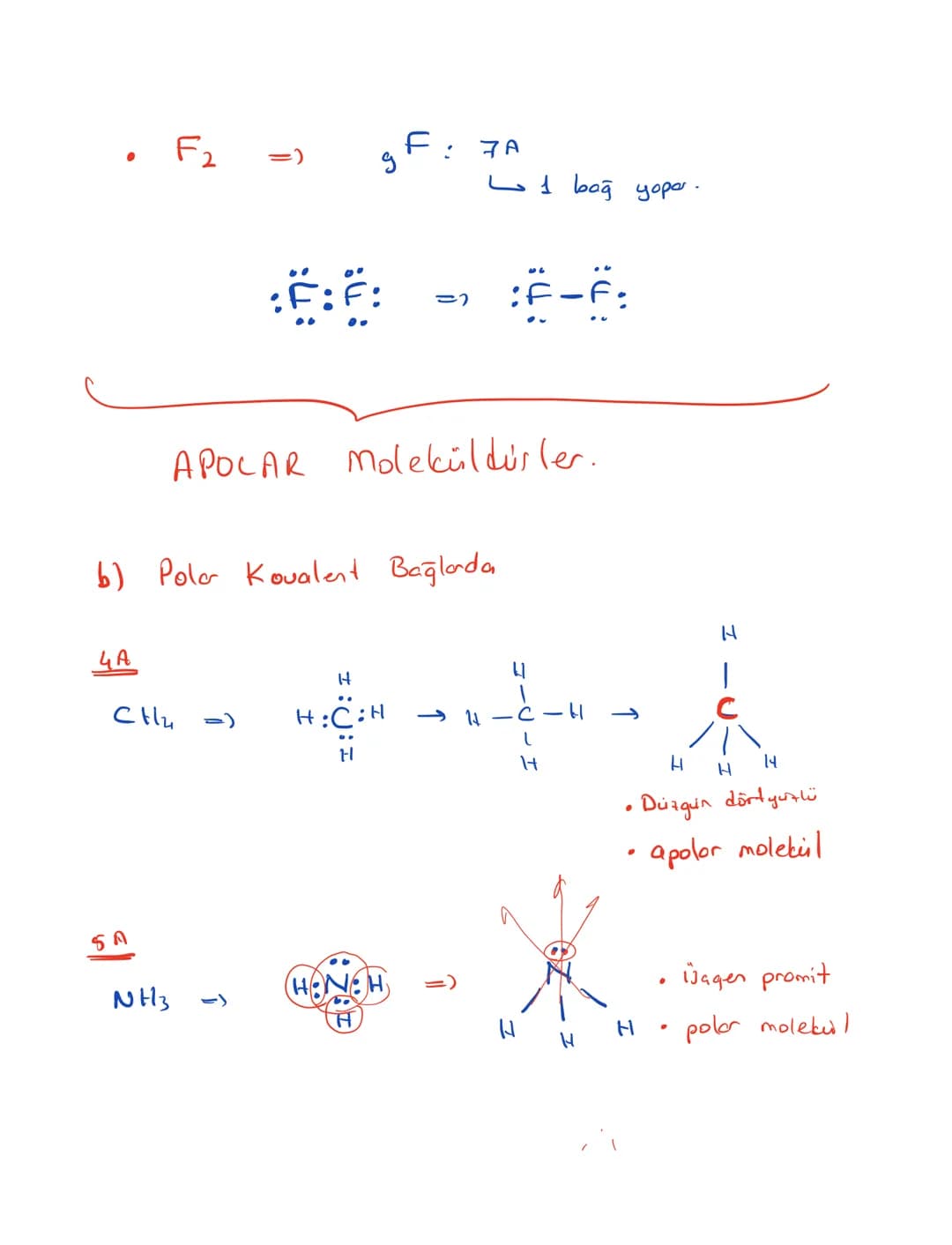

Polar Covalent Bonds

This section explores polar covalent bonds and their characteristics.

Examples of molecules with polar covalent bonds:

1. CH₄ $Methane$
2. NH₃ $Ammonia$
3. H₂O $Water$
4. HCl $Hydrogen chloride$

Highlight: The page explains how the shape of the molecule affects its polarity.

Key points:

• CH₄ is a tetrahedral, nonpolar molecule
• NH₃ has a trigonal pyramidal shape and is polar
• H₂O has a bent shape and is polar
• HCl is linear but polar due to the electronegativity difference between H and Cl

The page also briefly mentions exceptions to the octet rule for elements in groups 2A and 3A, such as BeH₂ and BH₃.

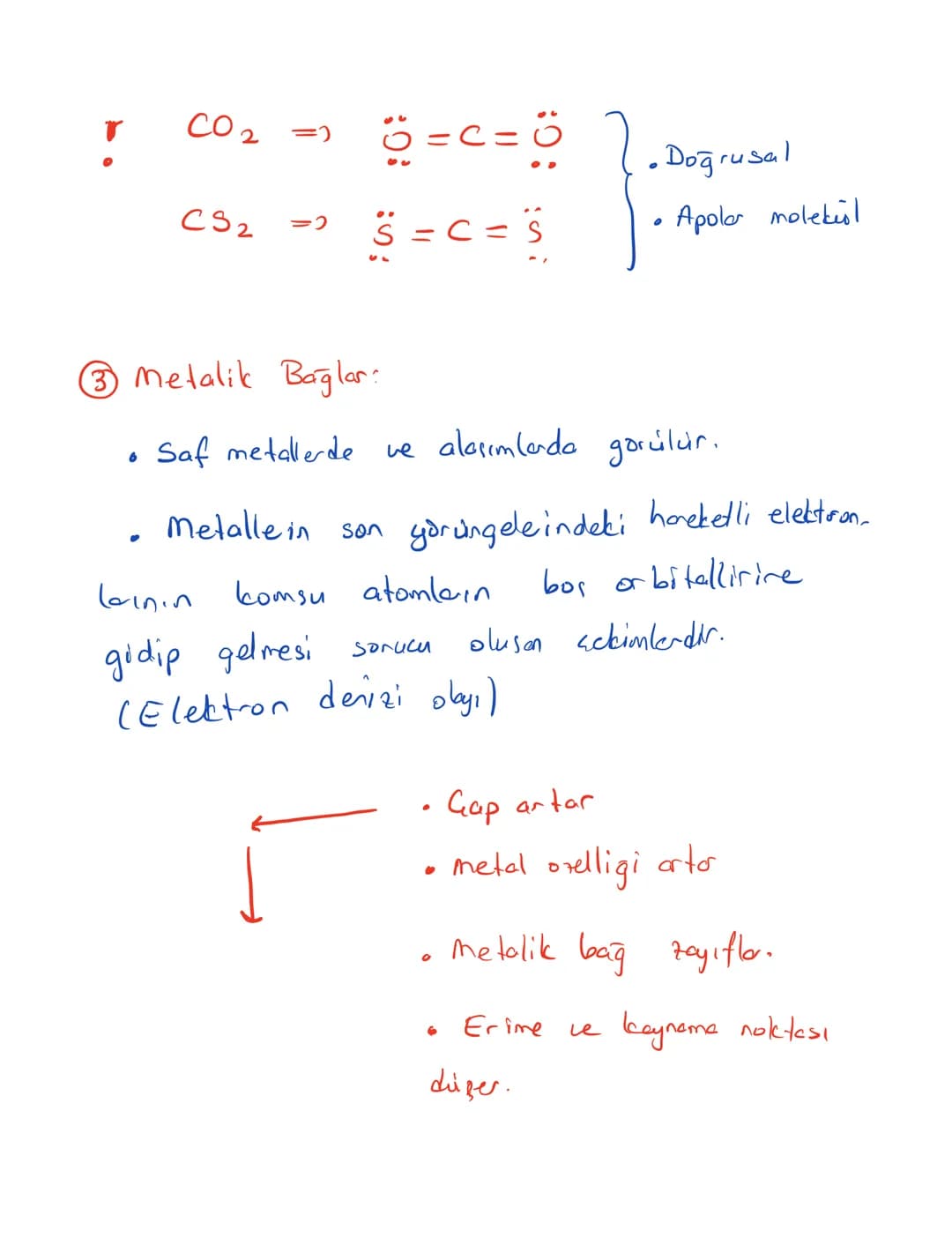

Exceptions to the Octet Rule and Metallic Bonds

This page covers exceptions to the octet rule and introduces metallic bonds.

Exceptions to the octet rule:

1. BeH₂ $Beryllium hydride$: linear, nonpolar molecule
2. BH₃ $Borane$: trigonal planar, nonpolar molecule
3. CO₂ $Carbon dioxide$: linear, nonpolar molecule
4. CS₂ $Carbon disulfide$: linear, nonpolar molecule

Definition: Metallic bonds are electrostatic attractions between positively charged metal ions and delocalized electrons.

Characteristics of metallic bonds:

• Found in pure metals and alloys
• Involve the sharing of mobile electrons among metal atoms
• Electron sea model explains their properties

Highlight: As the atomic number increases within a group, metallic bonding weakens, leading to lower melting and boiling points.

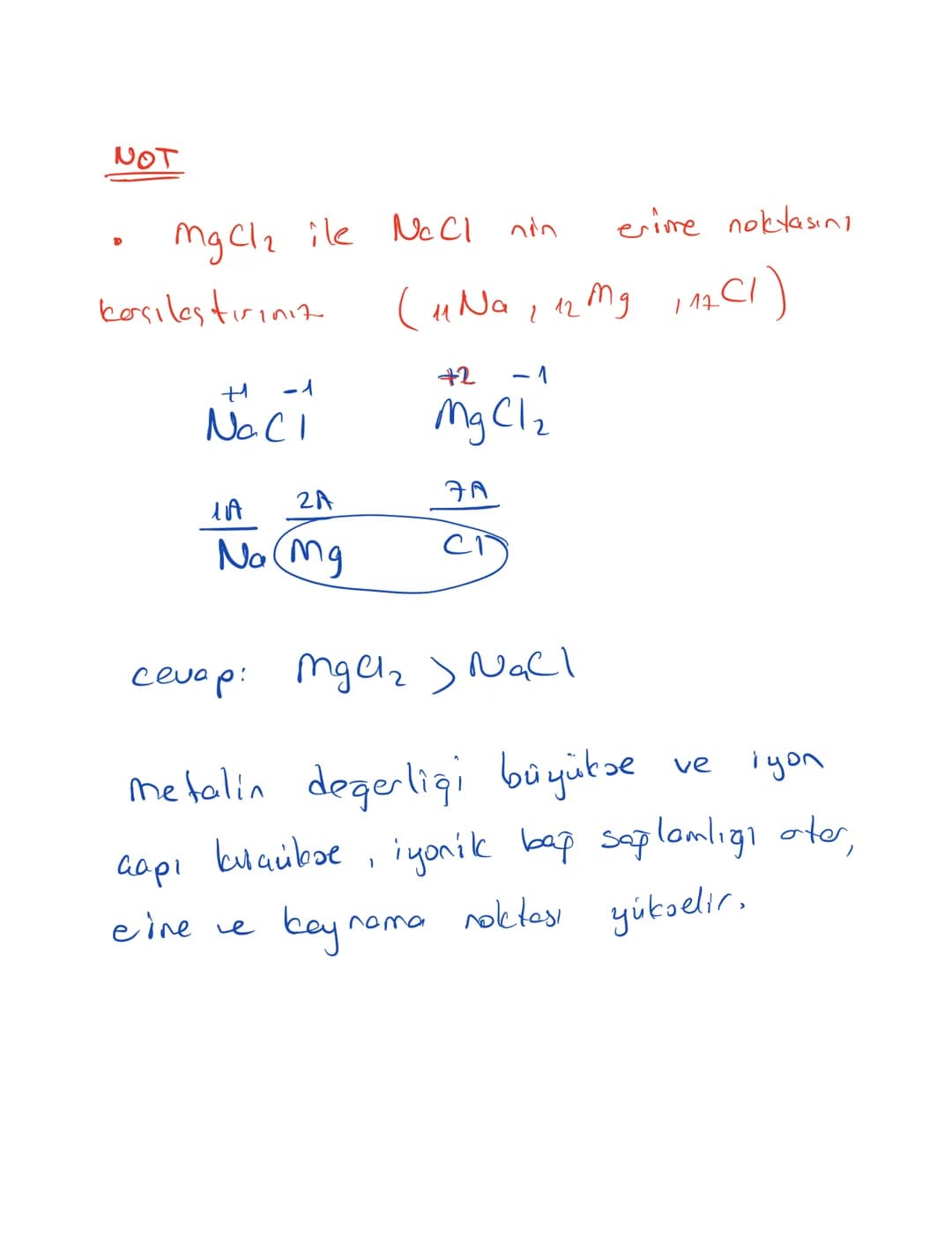

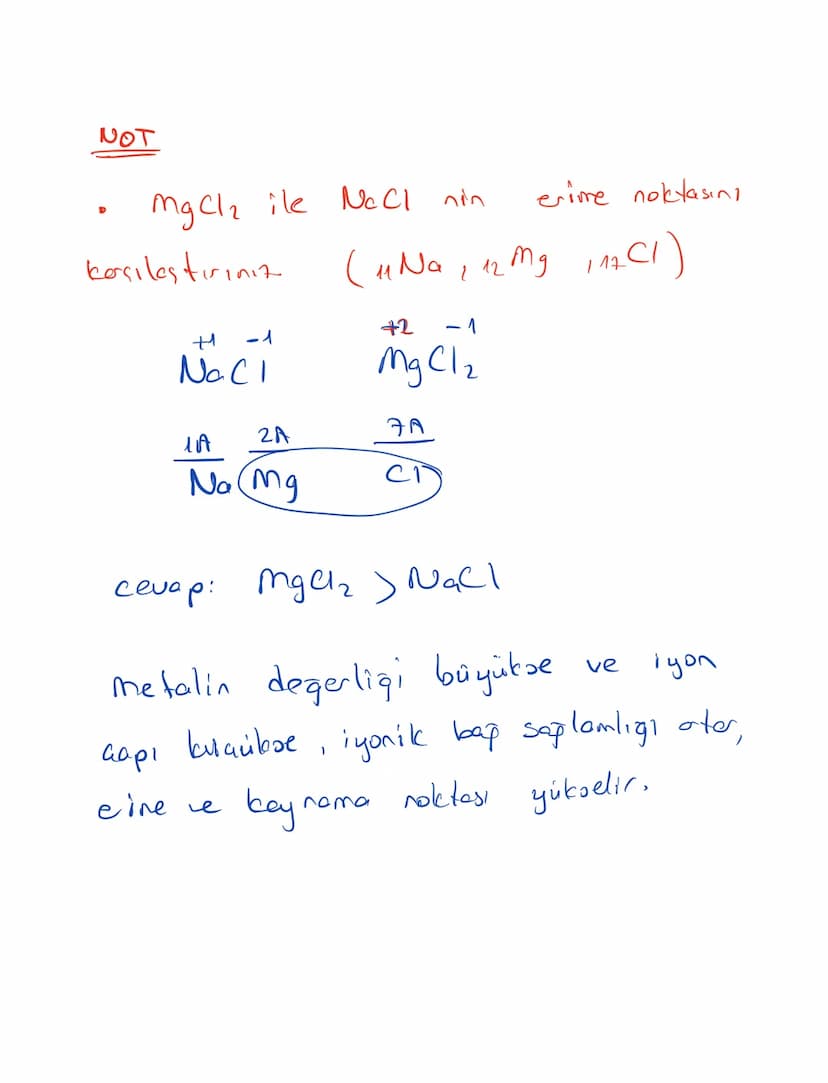

Comparison of Ionic Compounds

This page compares the properties of different ionic compounds, focusing on their melting points.

Example: The page compares the melting points of MgCl₂ and NaCl.

Key points:

• The melting point of MgCl₂ is higher than that of NaCl
• This is due to the higher charge of the Mg²⁺ ion compared to Na⁺
• Higher ion charges lead to stronger ionic bonds and higher melting points

Highlight: The strength of ionic bonds depends on the charge of the ions and their size.

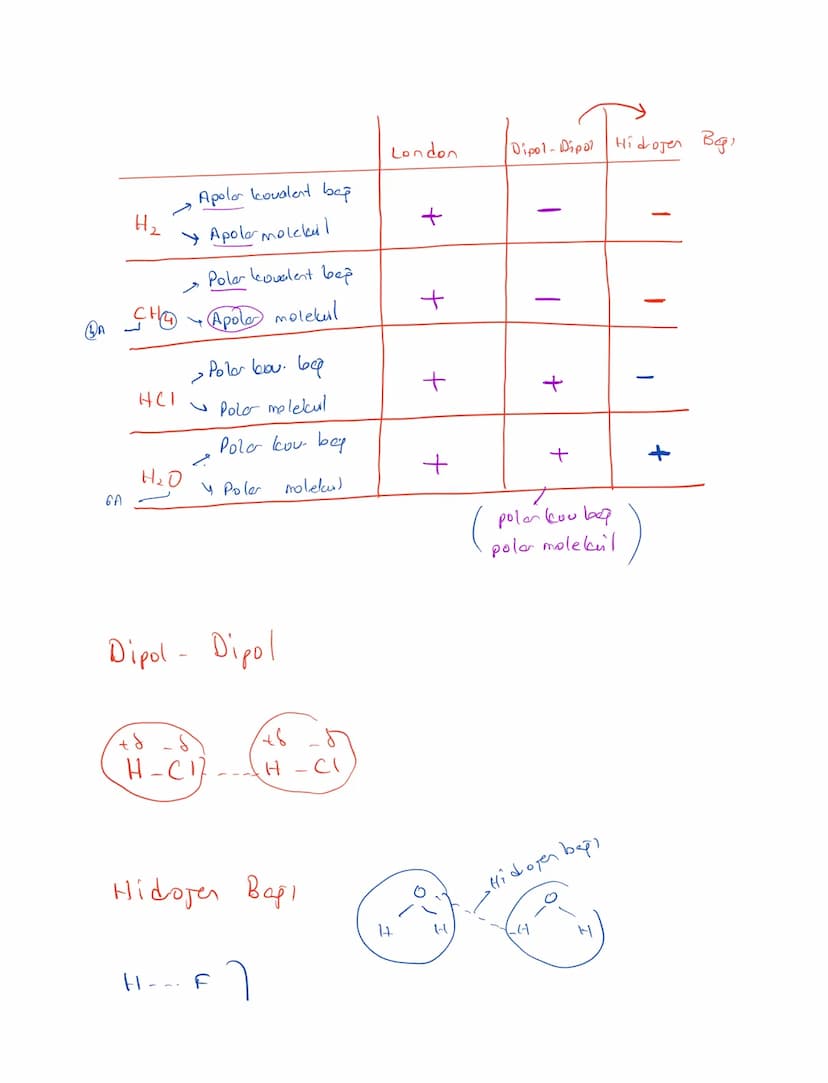

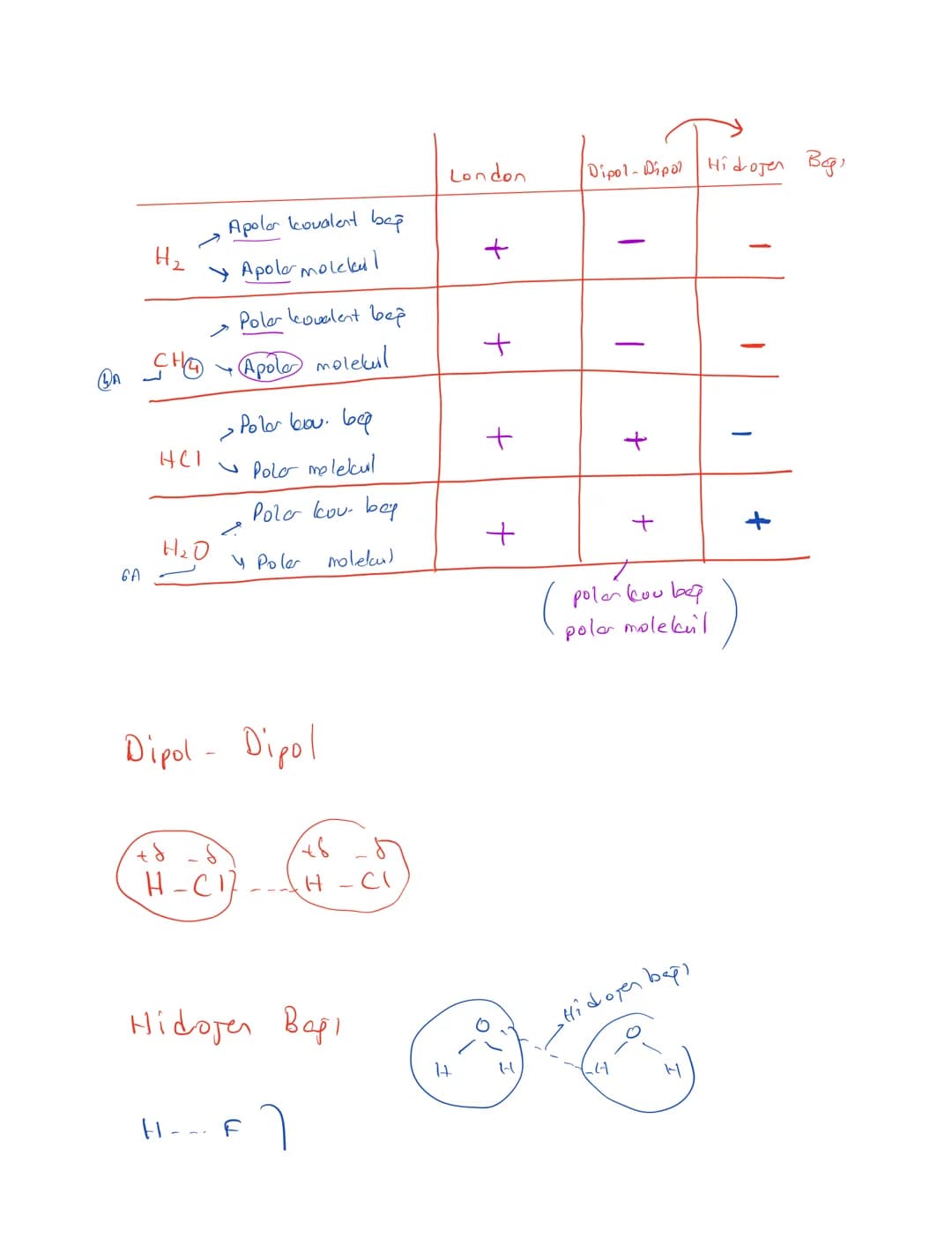

Intermolecular Forces

This page introduces weaker intermolecular forces, including hydrogen bonding, dipole-dipole interactions, and London dispersion forces.

Types of intermolecular forces:

1. London dispersion forces $present in all molecules$
2. Dipole-dipole interactions $in polar molecules$
3. Hydrogen bonding $in molecules with H bonded to N, O, or F$

Definition: Hydrogen bonding is a strong type of dipole-dipole interaction between a hydrogen atom bonded to a highly electronegative atom $N, O, or F$ and another electronegative atom.

The page provides examples of molecules exhibiting these forces, such as H₂, CH₄, HCl, and H₂O.

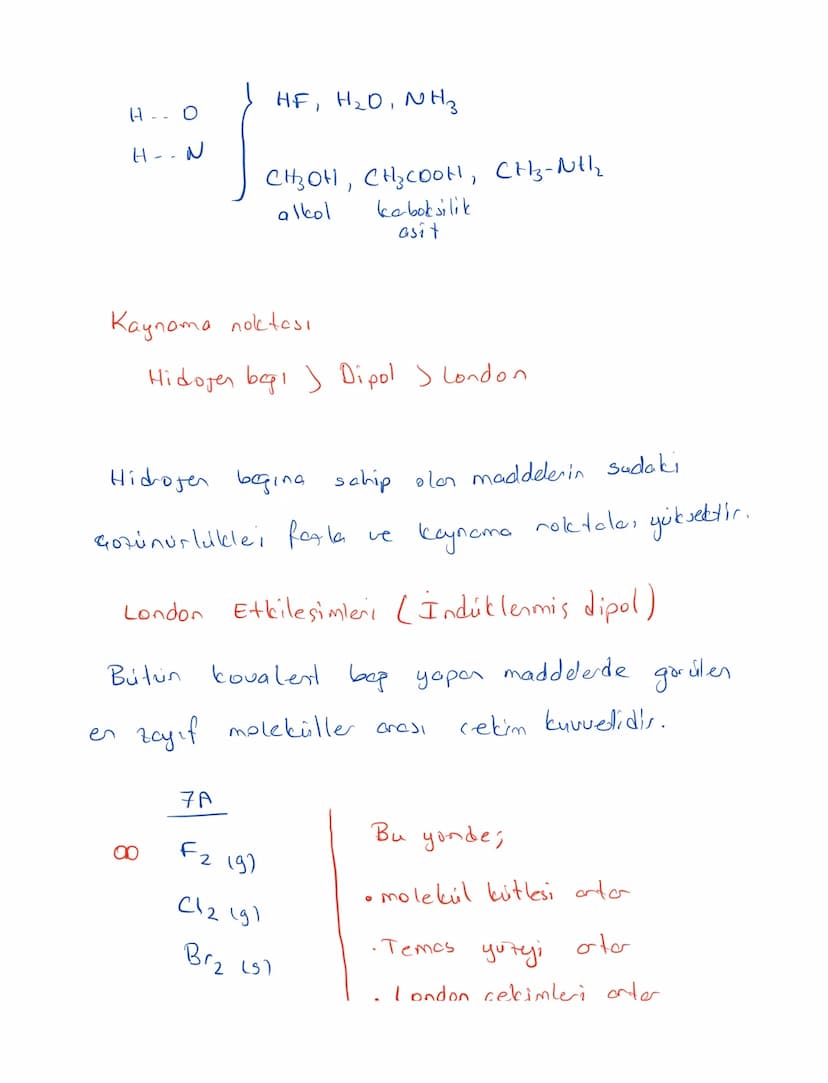

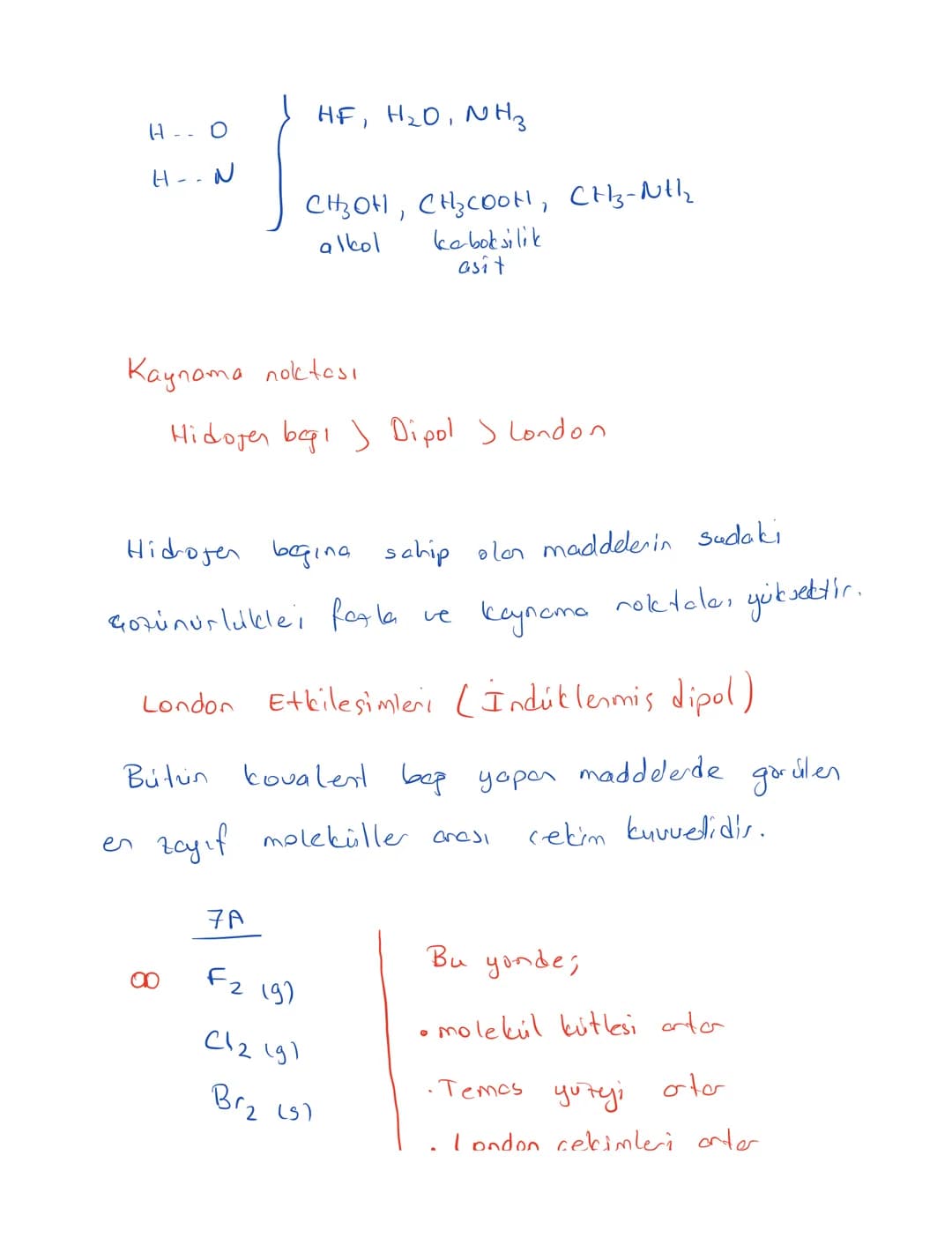

Hydrogen Bonding and London Forces

This page delves deeper into hydrogen bonding and London dispersion forces.

Molecules capable of hydrogen bonding:

• HF, H₂O, NH₃
• Organic compounds with -OH, -COOH, or -NH₂ groups

Highlight: Substances with hydrogen bonding have higher boiling points and greater solubility in water compared to those with only dipole-dipole or London forces.

London dispersion forces:

• Present in all covalently bonded substances
• The weakest intermolecular force
• Strength increases with molecular mass and surface area

Example: The boiling points of halogens $F₂, Cl₂, Br₂, I₂$ increase as molecular mass increases due to stronger London forces.

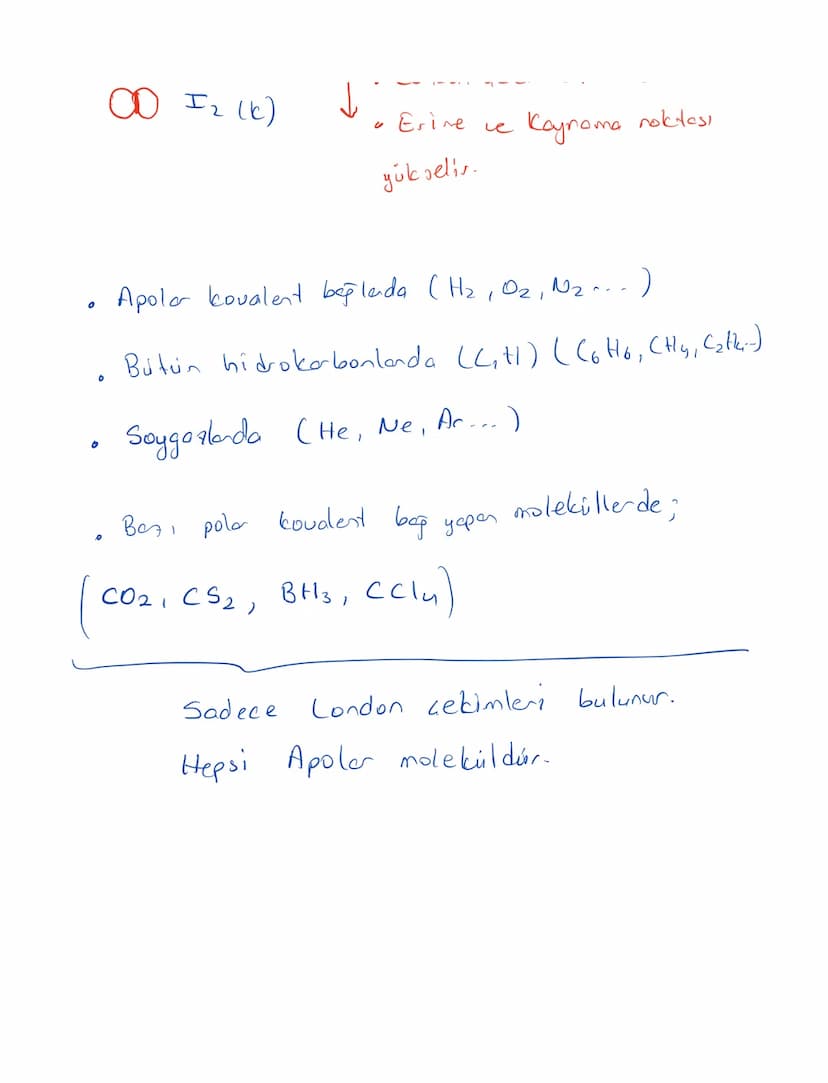

London Forces and Molecular Polarity

This page continues the discussion on London forces and introduces the concept of induced dipoles.

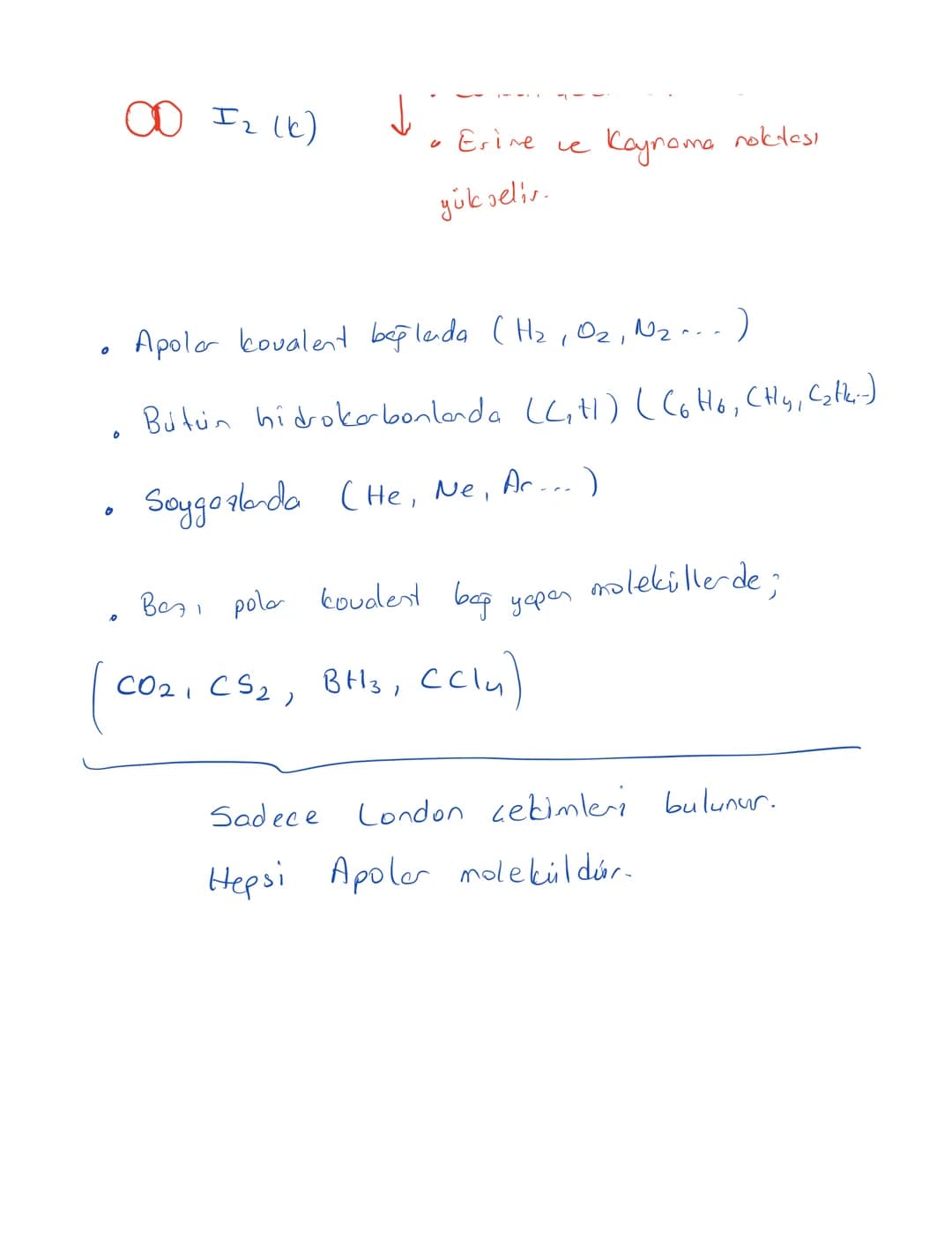

Substances with only London forces:

• Nonpolar covalent molecules $H₂, O₂, N₂$
• Hydrocarbons $C₆H₆, CH₄, C₂H₆$
• Noble gases $He, Ne, Ar$

Some polar molecules with only London forces:

• CO₂, CS₂, BH₃, CCl₄

Definition: Induced dipoles are temporary charge separations in molecules caused by the proximity of other molecules or ions.

The page illustrates various interactions involving induced dipoles, such as:

• H₂ molecules interacting with each other
• CH₄ molecules interacting with each other
• NaCl interacting with CH₄

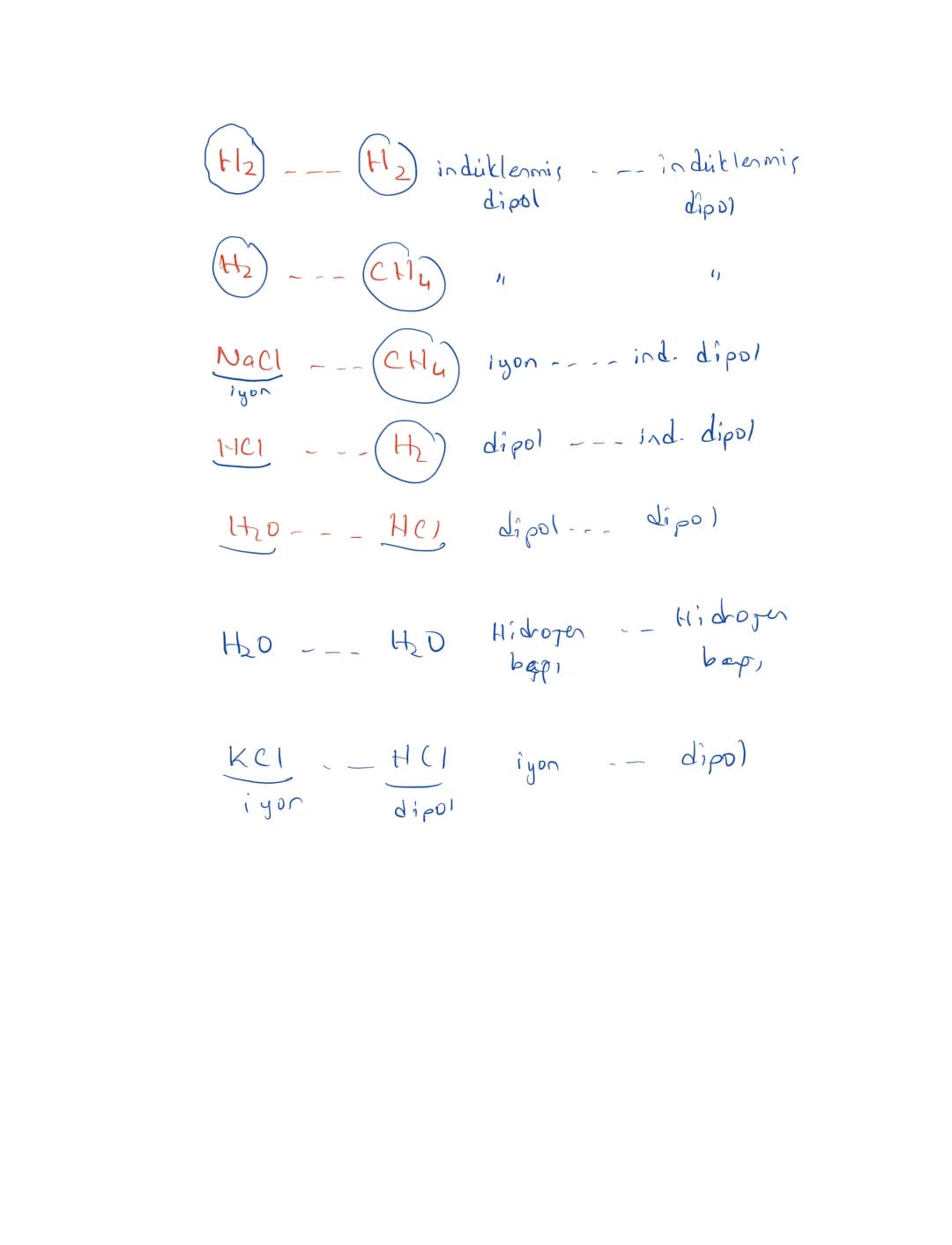

Types of Intermolecular Interactions

This final page summarizes the various types of intermolecular interactions with visual representations.

Interactions illustrated:

1. Induced dipole - induced dipole $e.g., H₂ molecules$
2. Ion - induced dipole $e.g., NaCl with CH₄$
3. Dipole - induced dipole $e.g., HCl with H₂$
4. Dipole - dipole $e.g., HCl molecules$
5. Hydrogen bonding $e.g., H₂O molecules$
6. Ion - dipole $e.g., KCl with HCl$

Highlight: This visual summary helps students understand the range of intermolecular forces and how they occur between different types of molecules and ions.

The page reinforces the importance of understanding these interactions for predicting and explaining chemical behavior and properties.

Complex Molecular Interactions

Final overview of various molecular interaction types and their combinations.

Highlight: Multiple types of interactions can exist simultaneously in complex molecules.

Example: Water molecules exhibiting both hydrogen bonding and dipole-dipole interactions.

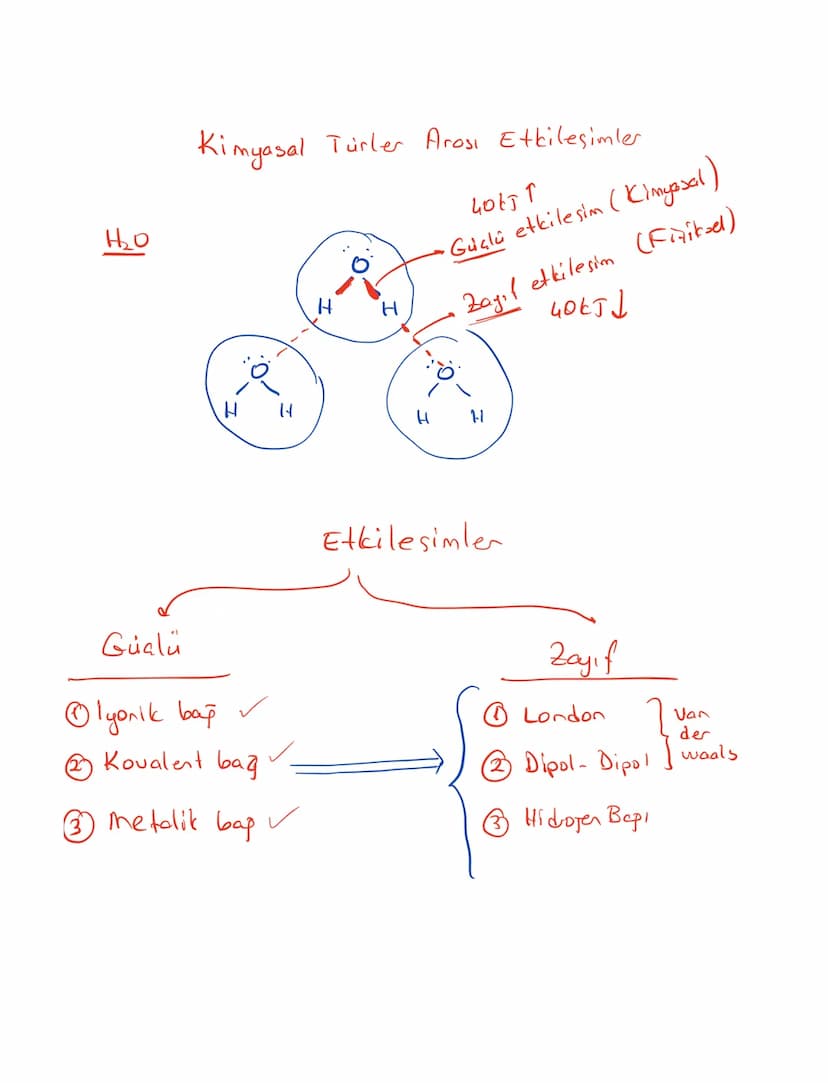

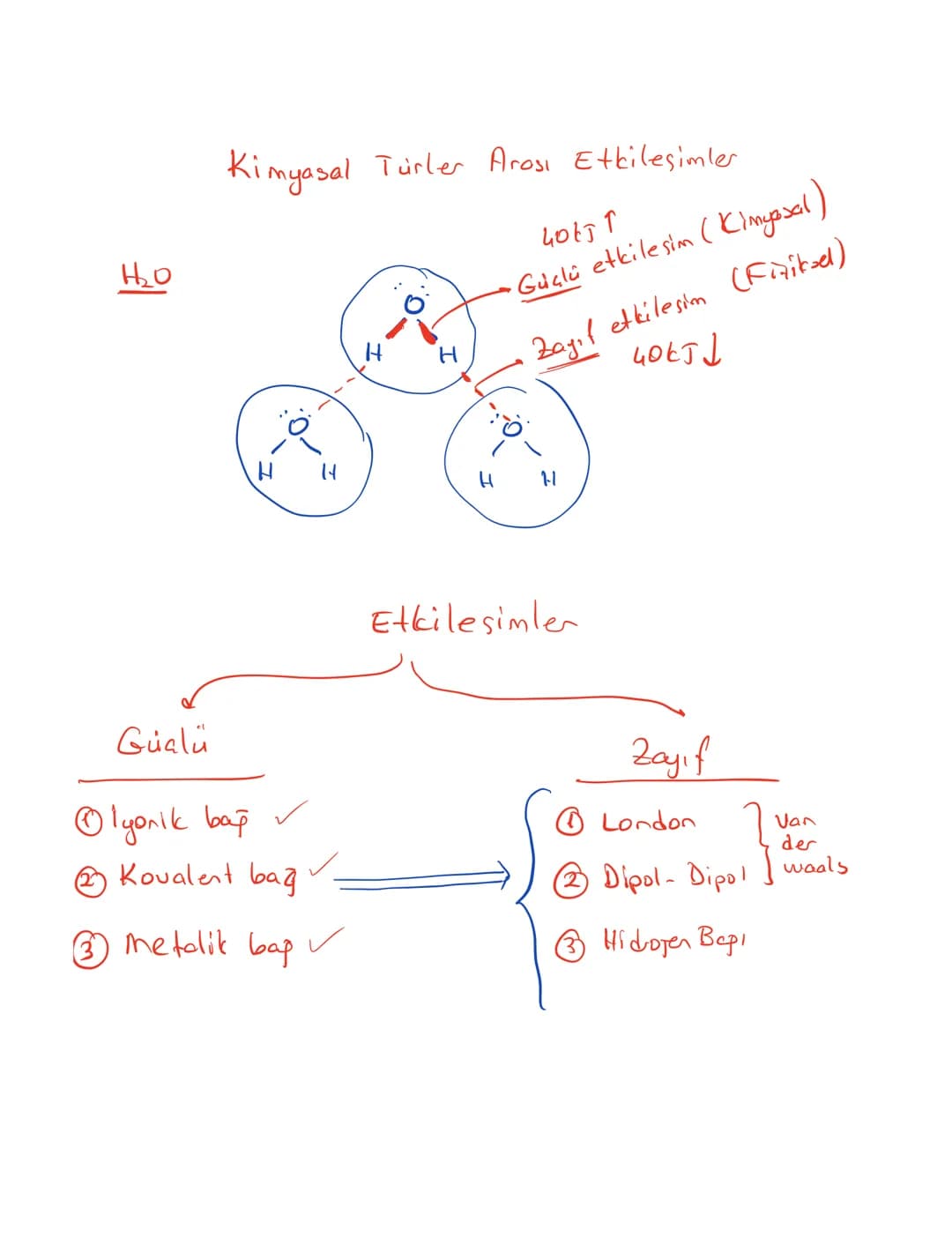

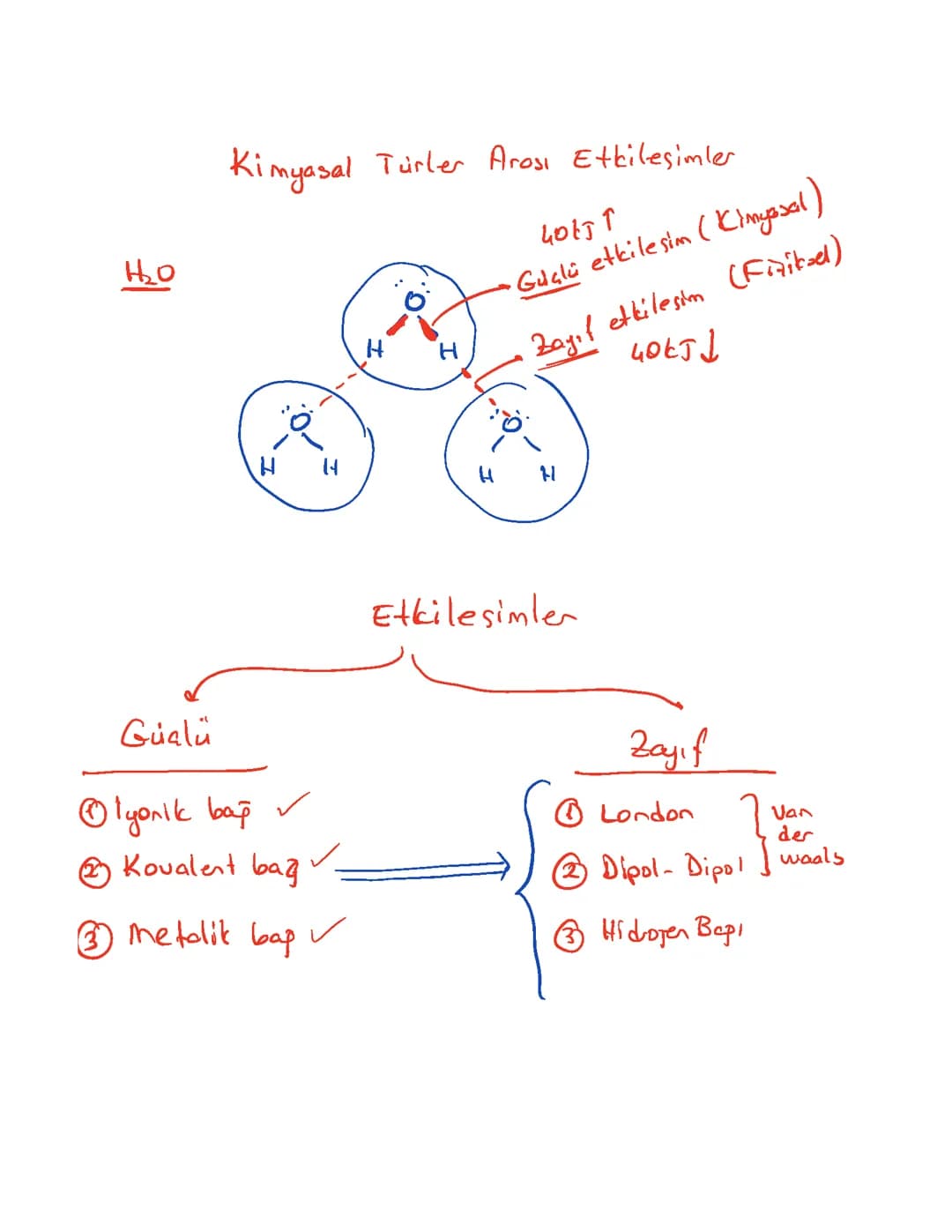

Chemical Interactions Between Species

This page introduces the concept of chemical interactions, categorizing them into strong $chemical$ and weak $physical$ interactions. It provides a comprehensive overview of the types of bonds and interactions covered in the guide.

Definition: Chemical interactions are forces that hold atoms together in molecules or compounds.

The page outlines the following types of interactions:

Strong Interactions:

1. Ionic bonds
2. Covalent bonds
3. Metallic bonds

Weak Interactions:

1. London forces
2. Dipole-dipole interactions
3. Hydrogen bonding

Highlight: Understanding these interactions is crucial for comprehending chemical behavior and properties of substances.
