Solid Pressure and Fluid Mechanics - This document covers key concepts in solid pressure, fluid statics, and gas pressure for 10th grade physics.
• Solid pressure depends on force and surface area
• Fluid pressure increases with depth and density
• Gas pressure decreases with altitude and is measured by barometers
• Practical applications include hydraulic systems and atmospheric pressure effects
24.07.2024
19

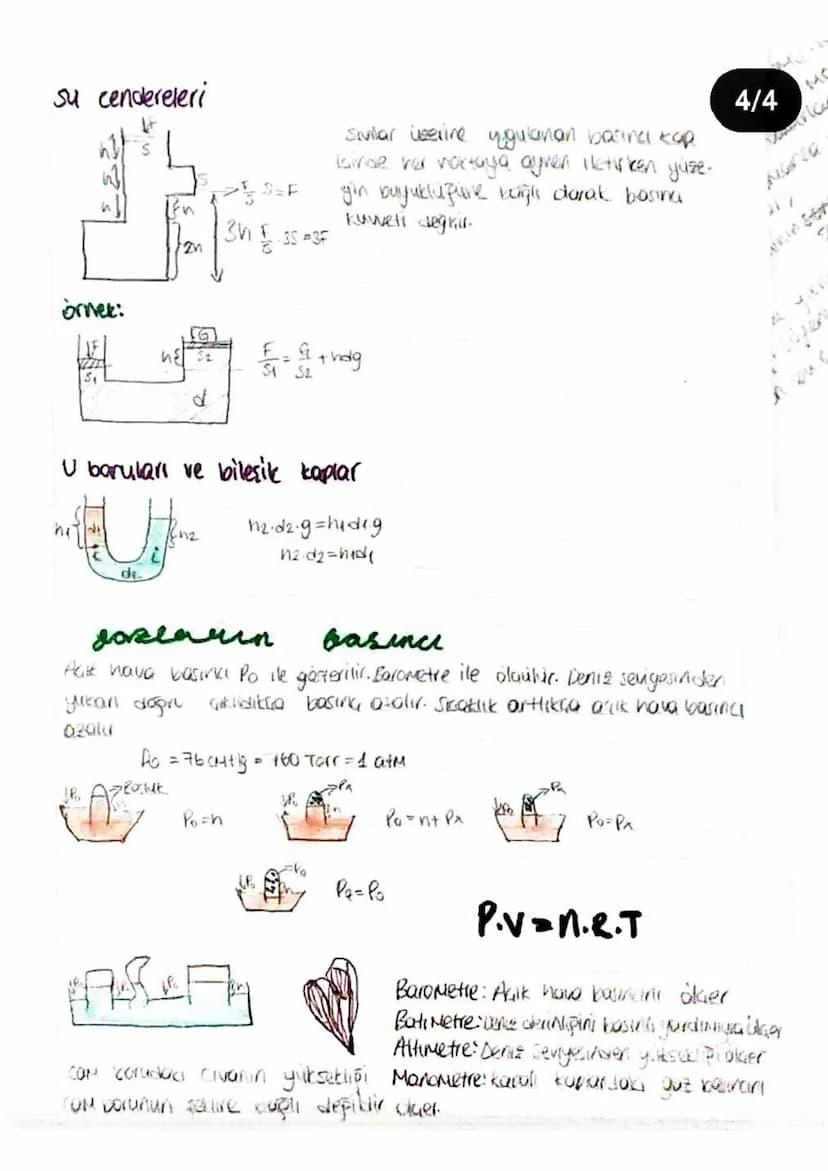

This page delves deeper into fluid mechanics, particularly focusing on hydraulic systems and pressure in connected fluid containers.
The concept of hydraulic lifts is introduced, demonstrating how pressure is transmitted equally through a fluid to create mechanical advantage.
Example: In a hydraulic system, a small force applied to a small piston can lift a much heavier load on a larger piston.
The page explains U baruları (U-tubes) and connected vessels, showing how fluid levels equalize in connected containers regardless of shape.
Vocabulary: Bileşik kaplar (Connected vessels) are containers that are joined at the bottom, allowing fluid to flow between them.
The discussion then shifts to gas pressure, introducing açık hava basıncı (atmospheric pressure). Key points include:
Definition: Açık hava basıncı (Atmospheric pressure) is the force per unit area exerted by the weight of the atmosphere.
The page concludes with an overview of pressure-measuring devices:

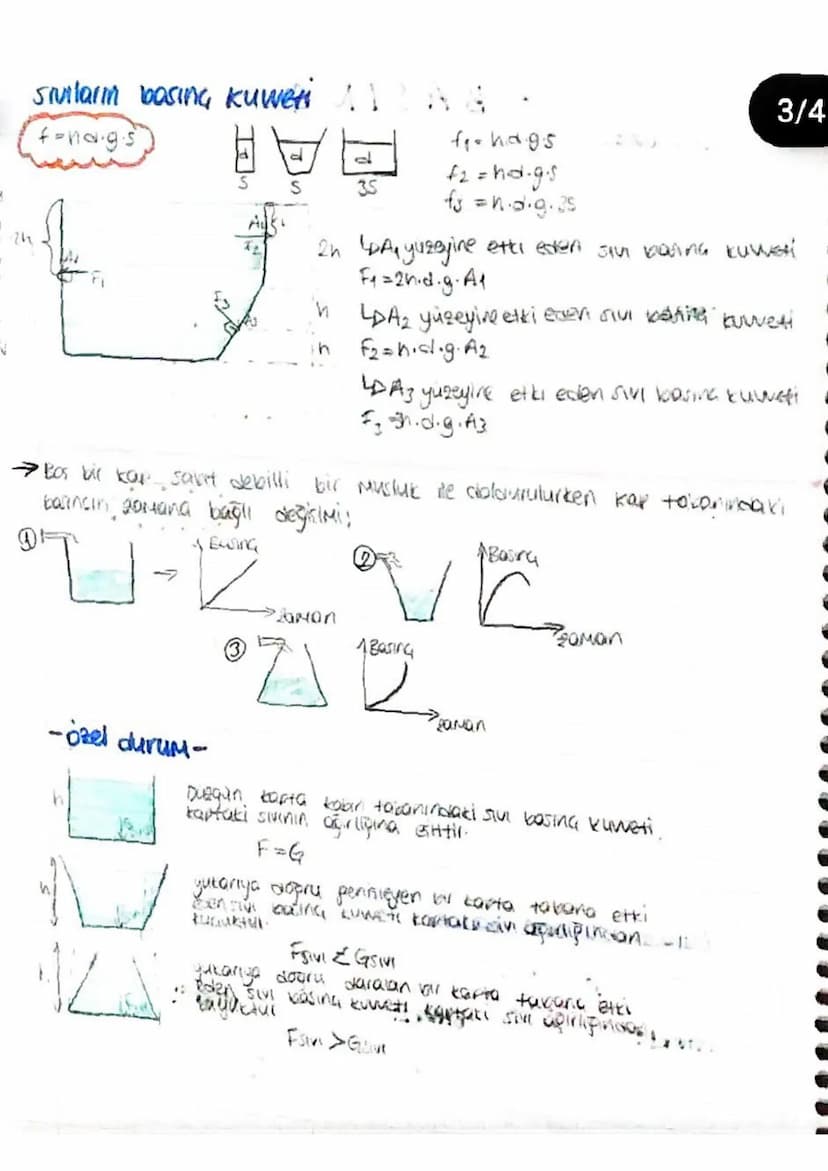

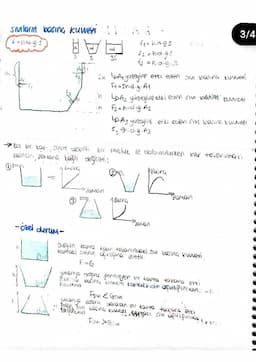

This page focuses on the forces exerted by fluids due to pressure and examines some special cases in fluid statics.
The force exerted by a fluid on a surface is given by the formula F = h·d·g·A, where h is depth, d is density, g is gravitational acceleration, and A is area.
Highlight: The force due to fluid pressure increases with depth, fluid density, and surface area.
Several examples are provided showing how to calculate the force on surfaces at different depths and orientations within a fluid.
Example: For a vertical surface extending from the fluid surface to depth h, the force is F = ½·h·d·g·A, where A is the area of the vertical surface.
The page then discusses special cases of fluid pressure:
In a container filled through a constant flow, the pressure at the bottom does not depend on the shape of the container.
For a fluid at rest in a closed container, the upward force on the bottom surface equals the weight of the fluid.
Vocabulary: Sıvı basınç kuvveti (Fluid pressure force) is the force exerted by a fluid on a surface due to the fluid's pressure.
These concepts are crucial for understanding 10. sınıf fizik durgun sıvıların basıncı (10th grade physics static fluid pressure) and have practical applications in hydraulic systems and fluid mechanics.

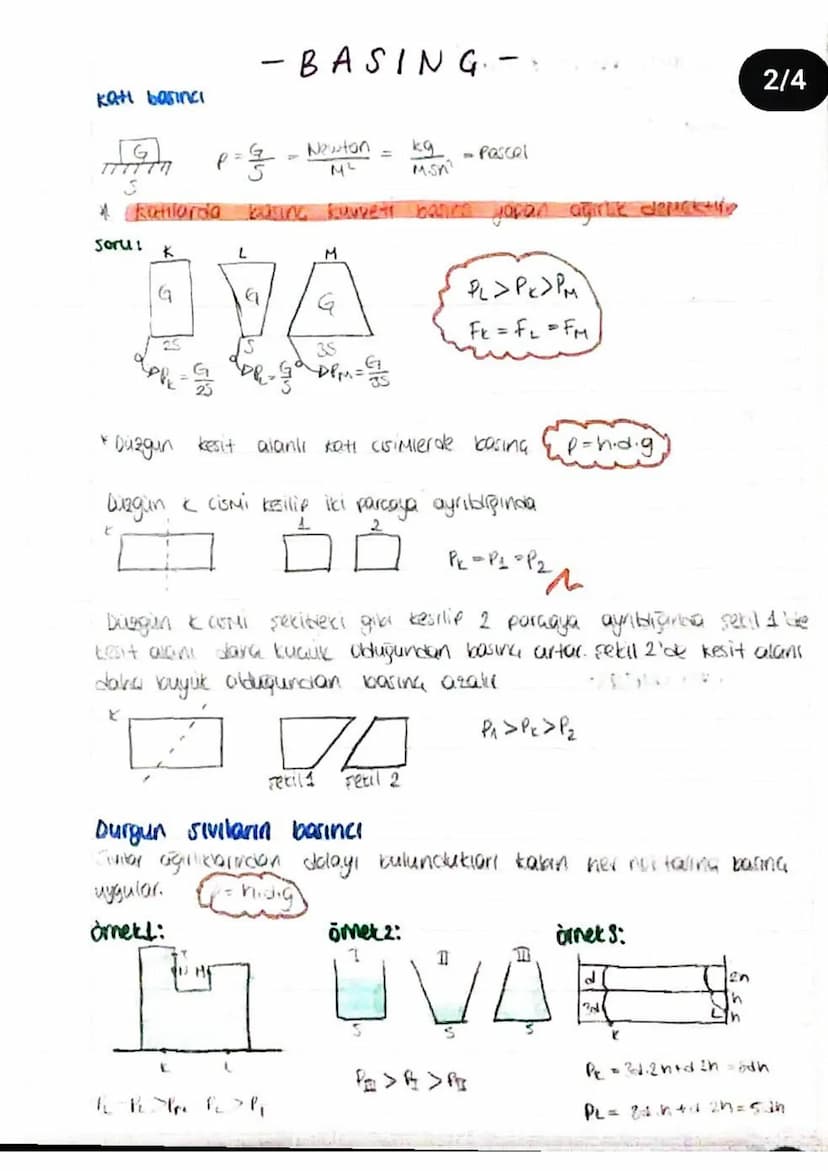

This page covers the fundamentals of katı basıncı (solid pressure) and related concepts in physics.
Solid pressure is defined as the force applied per unit area. The formula for solid pressure is P = F/S, where P is pressure, F is force in Newtons, and S is surface area in square meters. The resulting unit is Pascals.
Definition: Katı basıncı (Solid pressure) is the force exerted by a solid object per unit area of contact.
For objects with uniform cross-sectional areas, pressure can vary based on orientation. When an object is cut into two pieces:
Example: If the cut surface has a smaller area, the pressure increases. If the cut surface has a larger area, the pressure decreases.
The page also introduces durgun sıvıların basıncı (static fluid pressure). In fluids, pressure increases with depth due to the weight of the fluid above.
Highlight: Fluid pressure acts equally in all directions at a given depth.
Examples are provided showing pressure comparisons at different depths and locations within fluid containers.
